50kg，100kg，200kg，300kg，500kg，1000kg
Inquiry now
|

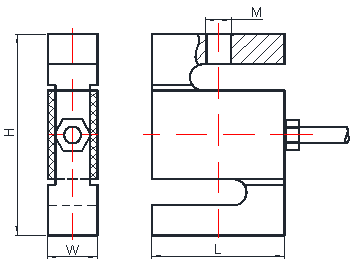

Capacities (kg) |
|
L |
W |
H |
M |
|
2000 |
mm |
70 |
45 |
86 |
M16×1.5 |
|
3000 |
mm |
80 |
50 |
100 |
M18×1.5 |
|
5000 |
mm |
92 |
58 |
130 |
M20×2 |
|
Rated output |
2.0mv/v±0.1% |
Insulation resistance |
≥5000Ω |
|
Non-linearity |
±0.03%F.S |
Excitation voltage |
10V (maximum 15V) AC/DC |
|
Hysteresis |
±0.03%F.S |
Environmental protection |
IP67 |
|
Creep in 30 minutes |
±0.03%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
300%F.S |
|
Input resistance |
381Ω ± 4Ω |
Operating temperature range |
-10℃ ～ +40℃ |
|
Output resistance |
350Ω ± 1Ω |
Material |
Alloy steel or Stainless steel |
