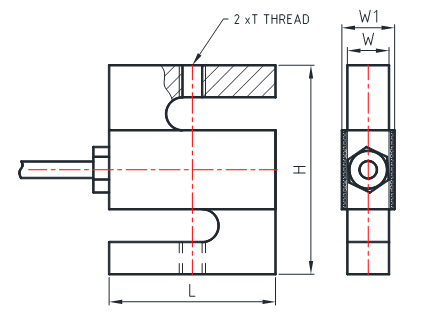

Capacities

L

W1

W

H

2×T

25kg, 50kg, 75kg

mm

50.8

26.7

12.7

63.5

M6×1.0

100kg, 150kg

mm

50.8

22.92

19.1

76.2

M10×1.5

250~300lb

mm

50.8

26.7

12.7

76.2

3/8-24UNF

250kg / 500-750lbs

mm

50.8

30.4

19.1

76.2

M12×1.75, 1/2-20UNF

500kg, 750kg

mm

50.8

25.4

19.1

76.2

M12×1.75

1Klbs, 1.5Klbs

mm

50.8

25.4

19.1

76.2

1/2-20UNF

1000kg, 1500kg / 2Klbs, 2.5Klbs, 3Klbs

mm

50.8

31.8

25.4

76.2

M12×1.75, 1/2-20UNF

5Klbs, 7.5Klbs

mm

76.2

31.8

25.4

107.9

3/4-16UNF

2000kg, 2500kg, 5000kg

mm

76.2

31.8

38.1

100.4

M20×1.5

10Klbs

mm

88.9

31.8

25.4

120.7

3/4-16UNF

15Klbs

mm

101.6

31.8

38.1

139.7

1-14UNS

20Klbs

mm

127

55.7

50.8

177.8

11/4-12UNF

40Klbs

mm

152.4

69.9

63.5

254

11/2-12UNF

Rated output

3.0mv/v±0.1%

Insulation resistance

≥5000Ω

Non-linearity

±0.03%F.S

Excitation voltage

10V (maximum 15V)  AC/DC

Hysteresis

±0.03%F.S

Environmental protection

IP67

Creep in 30 minutes

±0.03%F.S

Safe overload

150%F.S

Zero balance

±1%F.S

Ultimate overload

300%F.S

Input resistance

385Ω ± 5Ω

Operating temperature range

-10℃ ～ +40℃

Output resistance

350Ω ± 3Ω

Material

Alloy steel or Stainless steel
