Capacity

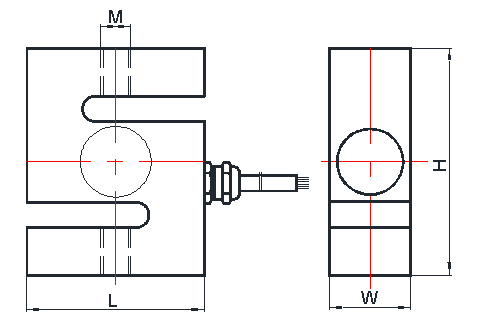

Size mm

Weight

(kg)

kg

L

W

H

M

500

70

32

90

M12

1.6

1000,2000

70

32

90

M16×2

1.6

3000,5000

100

45

120

M24×2

4.3

Capacity

500kg，1000kg，2000kg，3000kg，5000kg

Insulation resistance

≥5000 MΩ

Rated output

2.0mv/v±0.1%

Excitation voltage

10V (maximum 15V)  AC/DC

Non-linearity

0.03%F.S

Environmental protection

IP67

Hysteresis

0.03%F.S

Safe overload

150%F.S

Creep in 30 minutes

0.03%F.S

Ultimate overload

300%F.S

Zero balance

±1%F.S

Operating temperature range

-10℃ ～ +40℃

Input resistance

400Ω ± 20Ω

Material

Stainless steel

Output resistance

350Ω ± 3Ω

Cable Length

5m
