Capacity

Size mm

kg

H

L

W

D

M

20,30,50,75,

100,150

64

70

12

76

M8

200,250,300,500

64

70

20

76

M12

700,1000

64

70

25

76

M12

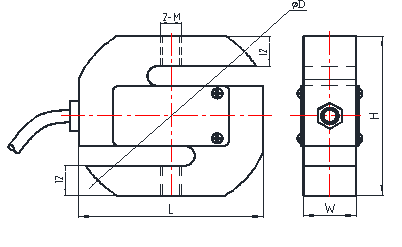

Capacity

Size mm

t

H

L

W

D

M

1.2~5

90

90

32

95

M20

7.5

90

90

40

95

M24

10

110

110

50

120

M30×2

Capacity

20kg, 30kg, 50kg, 75kg, 100kg, 150kg , 200kg, 250kg, 300kg, 500kg, 700kg, 1000kg

Insulation resistance

≥5000 MΩ

Rated output

2.0mv/v±0.1% (20-7500kg)
1.8mv/v±0.1%(10t)

Excitation voltage

10V (maximum 15V)  AC/DC

Non-linearity

0.03%F.S

Environmental protection

IP67

Hysteresis

0.03%F.S

Safe overload

150%F.S

Creep in 30 minutes

0.03%F.S

Ultimate overload

300%F.S

Zero balance

±1%F.S

Operating temperature range

-10℃ ～ +40℃

Input resistance

400Ω ± 20Ω

Material

合金钢

Output resistance

350Ω ± 3Ω

Cable Length

3m
