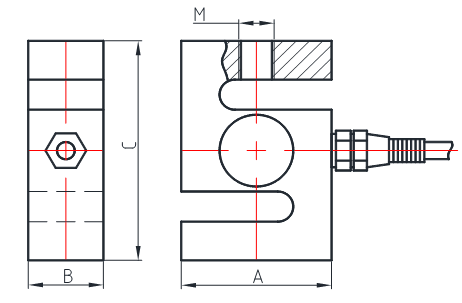

Size mm

Capacity t

0.3

0.5

1 - 1.5

2

3 - 5

10

20, 30

L

50.8

50.8

50.8

76.2

76.2

127

160

W

19

25.4

25.4

25.4

25.4

50

60

H

76.2

76.2

76.2

108

108

178

190

M

M12×1.75

M12×1.75

M16×2

M16

M18×1.5

M30×2

M39×2

Capacity

300kg, 500kg, 1000kg, 1500kg, 2000kg, 3000kg, 5000kg, 10000kg, 20000kg, 30000kg

Insulation resistance

≥5000 MΩ

Rated output

2.0mv/v ± 0.1%
3.0mv/v ± 0.1%

Excitation voltage

10V (maximum 15V)  AC/DC

Non-linearity

0.03%F.S

Environmental protection

IP67

Hysteresis

0.03%F.S

Safe overload

150%F.S

Creep in 30 minutes

0.03%F.S

Ultimate overload

300%F.S

Zero balance

±1%F.S

Operating temperature range

-10℃ ～ +40℃

Input resistance

380Ω ± 10Ω

Material

Alloy steel & Stainless steel

Output resistance

350Ω ± 3Ω

Cable Length

3m
