Capacity |

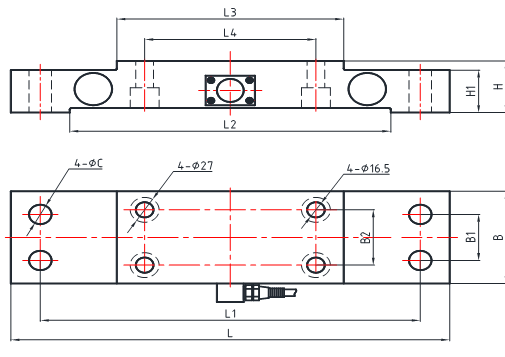

Size (mm) |
||||||||||
|
t |
L |
L1 |
L2 |
L3 |
L4 |
H |
H1 |
B |
B1 |
B2 |
ФC |
|
1.5 |
350 |
310 |
300 |
152 |
100 |
56 |
46 |
75 |
38 |
40 |
17 |
|
2.5 |
410 |
355 |
300 |
182 |
130 |
56 |
46 |
100 |
50 |
60 |
21 |
|
4~10 |
410 |
355 |
300 |
212 |
160 |
56 |
46 |
100 |
50 |
60 |
21 |
|
Rated output |
1.2mv/v±0.1% |
Insulation resistance |
≥5000MΩ |
|
Non-linearity |
±0.05%F.S |
Excitation voltage |
10V (maximum 15V) AC/DC |
|
Hysteresis |
±0.05%F.S |
Environmental protection |
IP67 |
|
Creep in 30 minutes |
±0.05%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
300%F.S |
|
Input resistance |
750Ω ± 10Ω |
Operating temperature range |
-10℃ ～ +40℃ |
|
Output resistance |
702Ω ± 3Ω |
Material |
Alloy steel |
