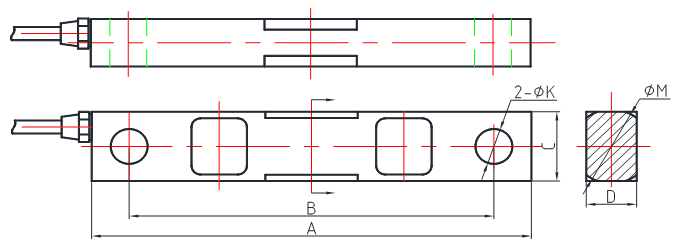

Capacity (Klb)

A

B

C

D

K

N

1~5

mm

190.5

158

31.8

31.8

12.7

31.5

10~25

mm

222.3

190.5

49.3

36.6

20.6

50.8

50~75

mm

342.9

292.1

74.7

62

33.3

76.2

Rated output

2.0mv/v±0.1%

Insulation resistance

≥5000MΩ

Non-linearity

±0.03%F.S

Rated excitation

10V (maximum 15V)  AC/DC

Hysteresis

±0.03%F.S

Protection class

IP67

Creep/ 30 minutes

±0.03%F.S

Safe overload

150%F.S

Zero balance

±1%F.S

Ultimate overload

300%F.S

Input impedance

750Ω ± 10Ω

Operating Temp. range

-10℃ ～ +40℃

Output impedance

702Ω ± 3Ω

Cable length

5m
