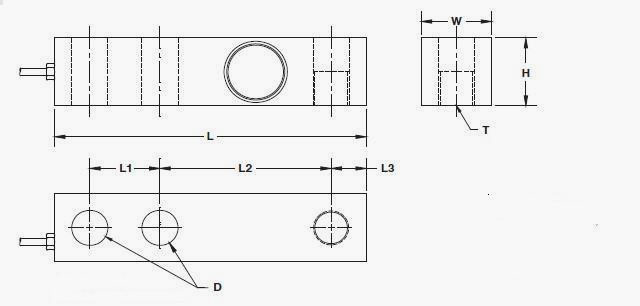

Capacity

L

L1

L2

L3

W

H

D

T

1K/2K/2.5K/3K/4klb

mm

130.0

25.4

76.2

12.7

31.0

31.0

13.5

(inch)

5.12

1.00

3.00

0.50

1.22

1.22

0.53

1/2-20UNF

5k/10klb

mm

171.5

38.1

95.3

19.0

38.1

38.1

19.8

(inch)

6.75

1.50

3.75

0.75

1.50

1.50

0.78

3/4-16UNF

Rated output

3.0 mv/v ±0.1%

Insulation resistance

≥5000 MΩ

Non-linearity

0.03 %F.S

Excitation voltage

10V (maximum 15V)  AC/DC

Hysteresis

0.03 %F.S

Environmental protection

IP68

Creep in 30 minutes

0.03 %F.S

Safe overload

150 %F.S

Zero balance

±1 %F.S

Ultimate overload

300 %F.S

Input resistance

385 Ω ±5 Ω

Operating temperature range

-10℃～+40℃

Output resistance

350 Ω ±3 Ω

Material

Alloy steel & Stainless steel
