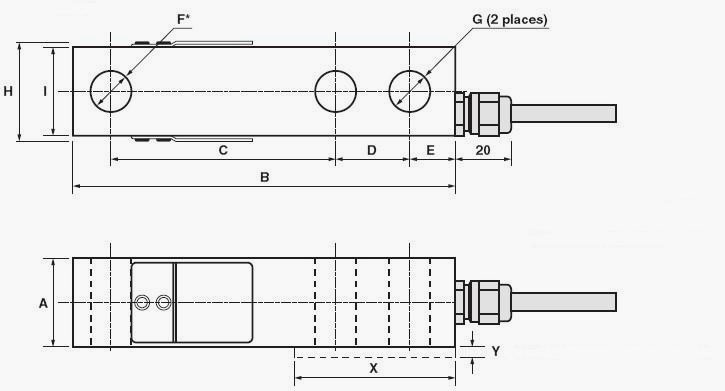

Capacity

A

B

C

D

E

F

G

H

I

X

Y

1000,1500,    2500,4000bs

30.5

130

76.2

25.4

16

13.5

13.5

34

30.5

57

4

250,500,  1000kg

30.5

130

76.2

25.4

16

M12

13.5

34

30.5

57

4

2000kg

36

130

76.2

25.4

16

M12

13.5

34

30.5

57

4

Rated output

2.0±0.1%

Insulation resistance

≥5000MΩ

Non-linearity

0.03%F.S

Excitation voltage

10V (maximum 15V)  AC/DC

Hysteresis

0.03%F.S

Environmental protection

IP67

Creep in 30 minutes

0.03%F.S

Safe overload

150%F.S

Zero balance

±1%F.S

Ultimate overload

300%F.S

Input resistance

385Ω±10Ω

Operating temperature range

-10℃～+40℃

Output resistance

351Ω±5Ω

Material

Alloy steel & Stainless steel
