Capacity(t)

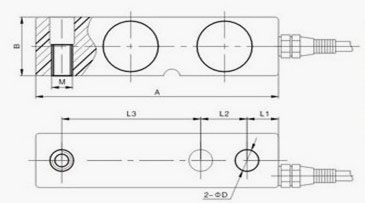

Size(mm)

Weight

(kg)

A

B

L1

L2

L3

D

M

0.1-0.5

130

31.8

15.7

25.4

76.2

13

M12

1.05

1-3

130

31.8

15.7

25.4

76.2

13

M16

2-5

171.5

38.1

19.1

38.1

95.3

19.8

M20*1.5

2

3

171.5

38.1

19.1

38.1

95.3

19.8

5

171.5

38.1

19.1

38.1

95.3

19.8

7.5

225.5

50.8

25.4

50.8

124

27

M24*2

4.6

10

225.5

50.8

25.4

50.8

124

27

Rated output

2.0,3.0 mv/v ±0.1%

Insulation resistance

≥5000 MΩ

Non-linearity

0.03 %F.S

Excitation voltage

10V (maximum 15V)  AC/DC

Hysteresis

0.03 %F.S

Environmental protection

IP67  IP68

Creep in 30 minutes

0.03 %F.S

Safe overload

150 %F.S

Zero balance

±1 %F.S

Ultimate overload

300 %F.S

Input resistance

380 Ω ±10 Ω

Operating temperature range

-10℃～+40℃

Output resistance

350 Ω ±3 Ω

Material

Alloy steel & Stainless steel
