50kg, 100kg, 150kg, 300kg, 500kg, 750kg, 1000kg, 1200kg
Inquiry now
|

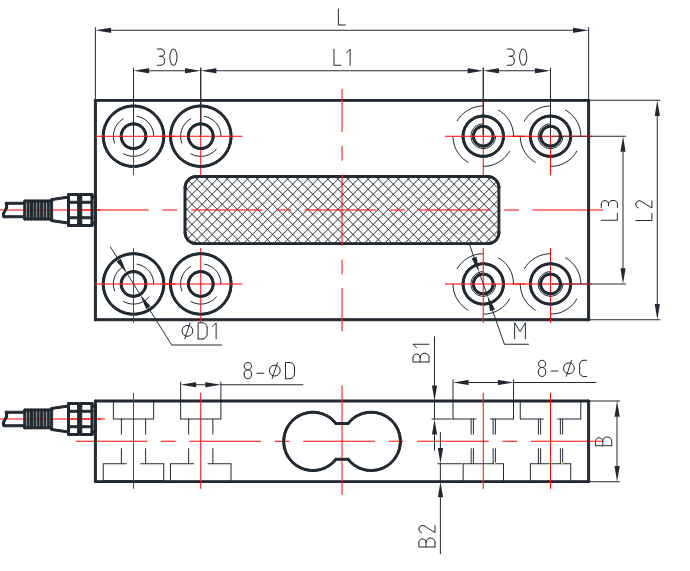

Capacities (kg) |
|
L |
L1 |
L2 |
L3 |
B |
B1 |
B2 |
C |
D |
D1 |
M |
|
50-100 |
mm |
200 |
110 |
80 |
56 |
25 |
8 |
8 |
18 |
18 |
9 |
M8 |
|
150 |
mm |
220 |
126 |
98 |
66 |
27 |
8 |
8 |
27 |
18 |
11 |
M10 |
|
300 |
mm |
220 |
126 |
98 |
66 |
31 |
8 |
8 |
27 |
18 |
11 |
M10 |
|
500 |
mm |
220 |
126 |
98 |
66 |
36 |
8 |
8 |
27 |
18 |
11 |
M10 |
|
750, 1000, 1200 |
mm |
220 |
126 |
98 |
66 |
47 |
10 |
10 |
27 |
22 |
13 |
M12 |
|
Rated output |
2.0mv/v ± 0.1% |
Insulation resistance |
≥5000Ω |
|
Nonlinearity |
±0.03%F.S |
Rated excitation |
10V (maximum 15V) AC/DC |
|
Hysteresis |
±0.03%F.S |
Protection class |
IP67 |
|
Creep/ 30 minutes |
±0.03%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
300%F.S |
|
Input impedance |
404Ω ± 15Ω |
Operating Temp. range |
-10℃ ～ +40℃ |
|
Output impedance |
350Ω ± 3Ω |
Cable length |
5m |
