50kg, 100kg, 150kg, 200kg, 250kg, 500kg, 750kg, 1000kg, 2000kg
Inquiry now
|

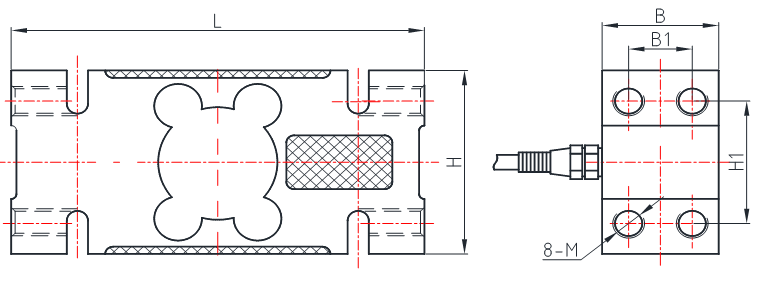

Capacity (kg) |
|
L |
B |
B1 |
H |
H1 |
M |
Base plate size |
|
50-200 |
mm |
156 |
44 |
24 |
75 |
50 |
M12×1.75 |
600×600 |
|
250-750 |
mm |
146 |
60 |
36 |
95 |
70 |
M12×1.75 |
600×800 |
|
1000-2000 |
mm |
176 |
76 |
46 |
126 |
95 |
M16×2 |
1200×1200 |
|
Rated output |
2.0mv/v±0.1% |
Insulation resistance |
≥5000Ω |
|
Nonlinearity |
±0.03%F.S |
Rated excitation |
10V (maximum 15V) AC/DC |
|
Hysteresis |
±0.03%F.S |
Protection class |
IP67 |
|
Creep/ 30 minutes |
±0.03%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
300%F.S |
|
Input impedance |
380Ω ± 10Ω |
Operating Temp. range |
-10℃ ～ +40℃ |
|
Output impedance |
350Ω ± 3Ω |
Cable length |
5m |
