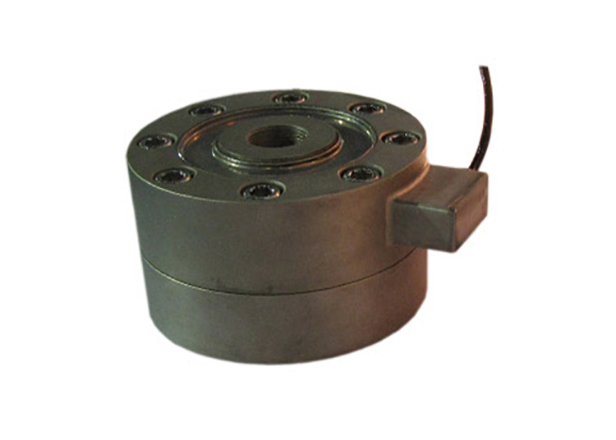

Features:

Nickel plated alloy steel IP68 spoke type load cell.

Tension and compression applications.

Suitable for truck scales, hopper scales, automobile testing facilities and other electronic weighing or force measuring field.

Range:

1t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t

Inquiry now

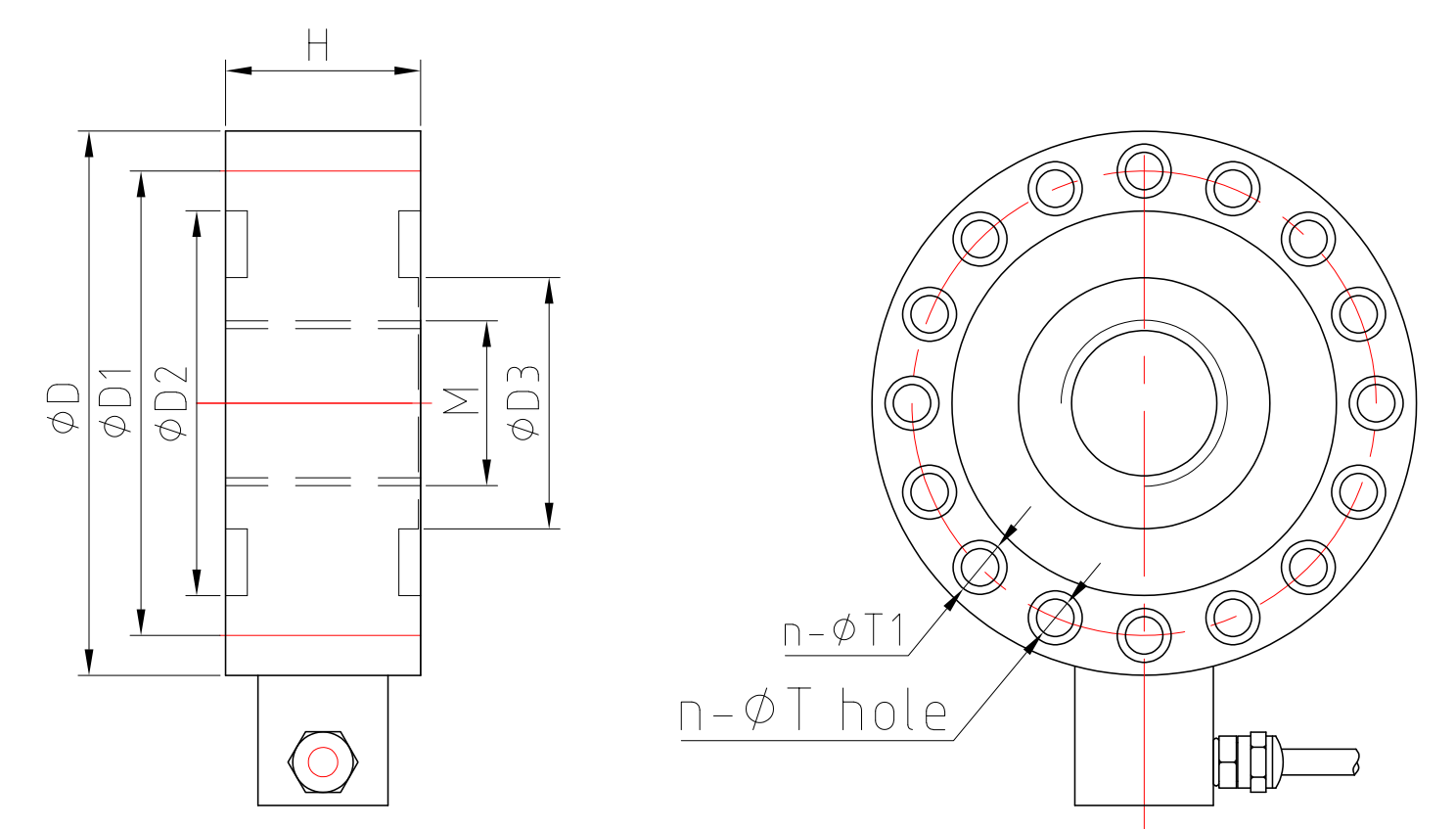

External dimensions



Capacity

Size  mm

t

D

D1

D2

D3

H

M

n-T

n-T1

1-5

113

97

76

42

35

M24×2

8-Ф7

8-Ф10.5

10,20

155

130

101

61

45

M36×2

12-Ф11

12-Ф18

30

180

150

120

80

58

M42×2

12-Ф13

12-Ф20

50

205

165

120

80

64

M42×2

16-Ф13

16-Ф20

100

280

228

176

124

90

M70×3

16-Ф17

16-Ф28

150,200

296

256

217

140

120

M90×3

16-Ф22

--

300

346

282

236

180

180

M120×3

16-Ф26

--

Technical parameters

Rated output

2.0 mv/v ±0.1%

Insulation resistance

≥5000MΩ

Non-linearity

0.05 % F.S

Excitation voltage

10V (maximum 15V)  AC/DC

Hysteresis

0.05% F.S

Environmental protection

IP67

Creep in 30 minutes

0.05 %F.S

Safe overload

150%F.S

Zero balance

±1 %F.S

Ultimate overload

300%F.S

Input resistance

700Ω ±30Ω

Operating temperature range

-10℃+ 40℃

Output resistance

700Ω ±3Ω

Material

Alloy steel or Stainless steel

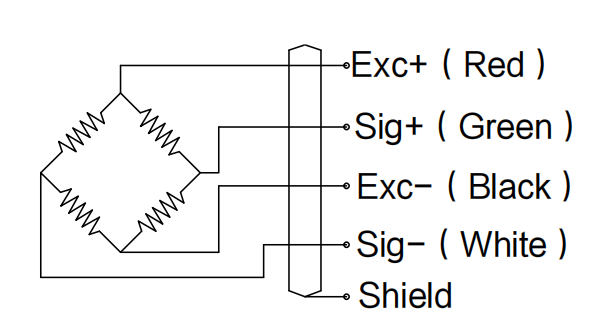

Connection method
