7.5t，15t，22.5t，30t，40t，50t，100t，150t，300t
Inquiry now
|

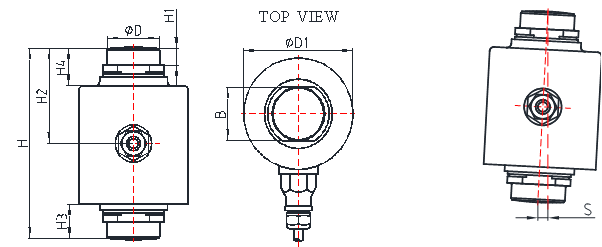

capacity |
H |
H2 |
H3 |
H4 |
H1 |
B |
D |
D1 |
Smax |
|
7.5t |
89 |
44 |
17 |
23 |
11 |
28 |
28 |
65 |
4.5 |
|
15t |
89 |
44 |
17 |
23 |
11 |
28 |
28 |
65 |
4.5 |
|
22.5t |
89 |
44 |
17 |
23 |
11 |
28 |
28 |
65 |
4.5 |
|
30t |
140 |
70 |
26 |
28 |
13 |
39 |
39 |
81 |
10.5 |
|
40t |
150 |
75 |
31 |
33 |
13 |
39 |
39 |
81 |
10 |
|
50t |
178 |
89 |
32 |
34 |
17 |
44 |
44 |
99 |
9 |
|
100t |
178 |
89 |
38.5 |
38.5 |
17 |
62 |
62 |
141.3 |
11.5 |
|
150t |
210 |
105 |
42.7 |
42.7 |
20.6 |
76.2 |
76.2 |
165.1 |
14.5 |
|
300t |
280 |
140 |
55.9 |
55.9 |
25 |
100 |
100 |
165.1 |
15 |
|
Rated output |
2.0mv/v±0.1% |
Insulation resistance |
≥5000Ω |
|
Non-linearity |
0.04%F.S |
Excitation voltage |
10V (maximum 15V) AC/DC |
|
Hysteresis |
0.04%F.S |
Environmental protection |
IP68 |
|
Creep in 30 minutes |
0.06%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
300%F.S |
|
Input resistance |
1150Ω ± 50Ω |
Operating temperature range |
-10℃ ～ +40℃ |
|
Output resistance |
1000Ω ± 3Ω |
Material |
Alloy steel |
