Capacity

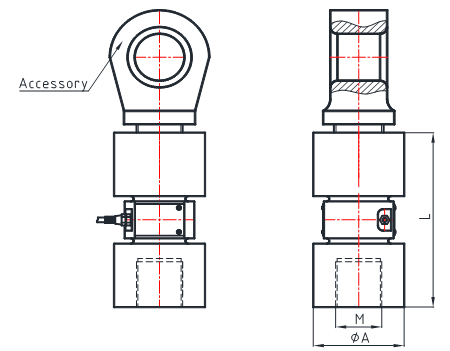

Size  mm

t

L

M

A

20

185

M42×3

78

30,40

225

M56×3

105

60

260

M65×2

125

Rated output

2.0mv/v ± 0.25%

Insulation resistance

≥5000Ω

Non-linearity

0.2%F.S

Excitation voltage

10V (maximum 15V)  AC/DC

Hysteresis

0.2%F.S

Environmental protection

IP67

Creep in 30 minutes

0.2%F.S

Safe overload

150%F.S

Zero balance

±1%F.S

Ultimate overload

300%F.S

Input resistance

400Ω ± 10Ω

Operating temperature range

-10℃ ～ +40℃

Output resistance

352Ω ± 3Ω

Material

Alloy steel or Stainless steel
