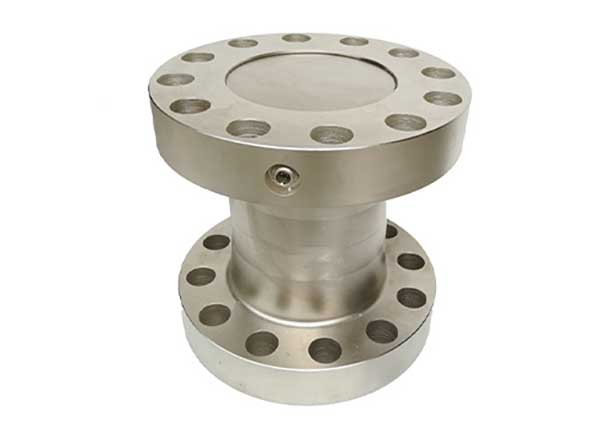

双法兰式传感器采用优质合金钢，可靠性好，安装简单，用于各类试验测力设备。
40t - 60t,100t,150t - 200t, 300t, 400t, 500t, 1000t, 2500t, 2500S, 3500t
Inquiry now
|
capacity(t) |

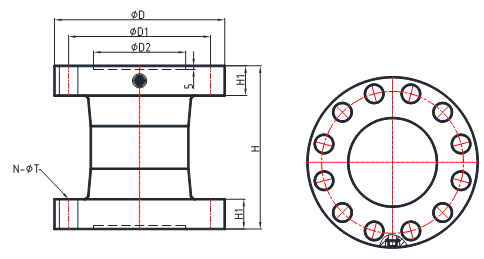

Size（mm） |
|||||
|
D |
D1 |
D2 |
H |
H1 |
N-ØT |
|
|
40-60 |
197 |
160 |
110 |
160 |
25 |
12-Ø22 |
|
100 |
240 |
200 |
135 |
230 |
40 |
12-Ø26 |
|
150-200 |
305 |
250 |
160 |
326 |
57 |
12-Ø33 |
|
300 |
415 |
360 |
256 |
358 |
69 |
18-Ø33 |
|
400 |
415 |
360 |
256 |
358 |
80 |
18-Ø33 |
|
500 |
415 |
360 |
256 |
398 |
69 |
18-Ø33 |
|
1000 |
600 |
515 |
352 |
480 |
110 |
20-Ø45 |
|
2500 |
700 |
610 |
280 |
800 |
240 |
24-Ø45 |
|
2500S |
640 |
550 |
/ |
600 |
150 |
20-Ø45 |
|
3500 |
700 |
610 |
335 |
800 |
240 |
24-Ø45 |
|
Rated output |
2.0mv/v ± 0.1% |
Insulation resistance |
≥5000Ω |
|
Non-linearity |
0.3%F.S |
Excitation voltage |
10V (maximum 15V) AC/DC |
|
Hysteresis |
0.3%F.S |
Environmental protection |
IP67 |
|
Creep in 30 minutes |
0.05%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
300%F.S |
|
Input resistance |
750Ω ± 10Ω |
Operating temperature range |
-10℃ ～ +40℃ |
|
Output resistance |
702Ω ± 3Ω |
Material |
Alloy steel |
