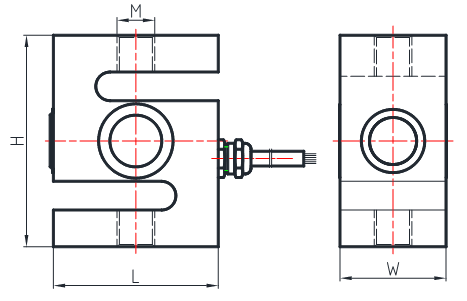

Capacity (kg)

L

W

H

M

200,300

mm

62

30

80

M10×1

500

mm

62

30

80

M12×1

1000

mm

70

30

90

M12×1

2000

mm

70

45

90

M16×1.5

3000

mm

80

50

100

M18×1.5

5000

mm

92

58

130

M20×2

Rated output

2.0mv/v±0.1%

Insulation resistance

≥5000Ω

Non-linearity

±0.02%F.S

Rated excitation

10V (maximum 15V)  AC/DC

Hysteresis

±0.02%F.S

Protection class

IP67

Creep in 30 minutes

±0.02%F.S

Safe overload

150%F.S

Zero balance

±1%F.S

Ultimate overload

300%F.S

Input resistance

385Ω ± 5Ω

Operating Temp. range

-10℃ ～ +40℃

Output resistance

350Ω ± 1Ω

Cable length

5m
