Unique bridge structure, cup and steel ball mounted, Self-resetting and centering, good side force resistance and shock resistance.
Moisture proof sealed, ideal for hostile environment, Simple to install, easy to use, good interchangeability suitable for electronic truck scale, railroad scale, hopper scale and various special scales.
10t，20t，25t，30t，40t，50t
Inquiry now
|

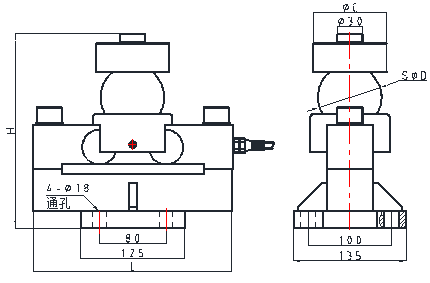

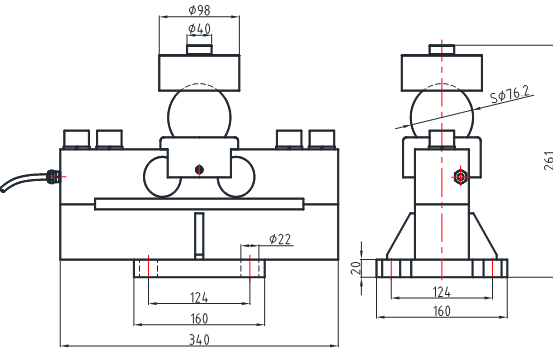

Size (mm) |
Capacity |
|
|
10-30t |
40t |
|
|
H |
230.2 |
236.2 |
|
C |
88 |
88 |
|
D |
76.2 |
76.2 |
|
L |
240 |
240 |
|
Weight （kg） |
17．5 |
|
|
Rated output |
2.0mv/v±0.1% |
Insulation resistance |
≥5000MΩ |
|
Non-linearity |
±0.03%F.S |
Excitation voltage |
10V (maximum 15V) AC/DC |
|
Hysteresis |
±0.03%F.S |
Environmental protection |
IP67 |
|
Creep in 30 minutes |
±0.03%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
300%F.S |
|
Input resistance |
770Ω ± 10Ω |
Operating temperature range |
-10℃ ～ +40℃ |
|
Output resistance |
700Ω ± 5Ω |
Material |
Alloy steel |
