Capacities 500lb~10klb,0.25~ 5t
Single shear beam, easy for installation
Safe and anti-explosive product
Suitable electronic truck scales, track scales and other weighing devices
Interchangeable ZEMIC-BM8C
0.25t ,0.5t ,1t , 2t, 5t
0.5 klb,1 klb,2.5 klb,4 klb,5 klb,10klb
|

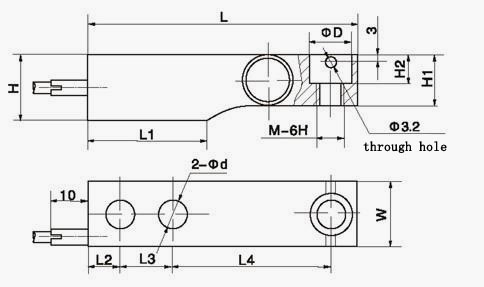

Capacity |
L |
L1 |
L2 |
L3 |
L4 |
H |
H1 |
H2 |
|
50kg 500lb |
130.0(5.12) |
57 (2.24) |
15.5 (0.62) |
25.4 (1.0) |
76.2 (3.0) |
31.8 (1.24) |
25.5 (1.01) |
14.2 (0.55) |
|
500kg 1klb |
130.0(5.12) |
57.1 (2.25) |
15.5 (0.62) |
25.4 (1.0) |
76.2 (3.0) |
31.8 (1.24) |
26 (1.02) |
14.2 (0.55) |
|
1.0t 2klb,2.5klb |
130.0(5.12) |
57.1 (2.25) |
15.5 (0.62) |
25.4 (1.0) |
76.2 (3.0) |
31.8 (1.24) |
27.95 (1.1) |
14.2 (0.55) |
|
1.5t,2.0t 4klb,5klb |
130.0(5.12) |
57.1 (2.25) |
15.5 (0.62) |
25.4 (1.0) |
76.2 (3.0) |
35.9 (1.41) |
31.95 (1.26) |
14.2 (0.55) |
|
5.0t 10klb |
172 (6.71) |
76.2 (3.0) |
19.1 (0.75) |
38.1 (1.50) |
95.3 (3.75) |
44 (1.72) |
40 (1.57) |
20 (0.78) |
|
Capacity |
W |
D |
d |
M |
|
|
|
|
|
50kg 500lb |
31.8 (1.23) |
20.5 (0.81) |
13 (0.51) |
M12 1/2-20UNF |
|
|
|
|
|
500kg 1klb |
31.8 (1.23) |
20.5 (0.81) |
13 (0.51) |
M12 1/2-20UNF |
|
|
|
|
|
1.0t 2klb,2.5klb |
31.8 (1.23) |
20.5 (0.81) |
13 (0.51) |
M12 1/2-20UNF |
|
|
|
|
|
1.5t,2.0t 4klb,5klb |
31.8 (1.23) |
20.5 (0.81) |
13 (0.51) |
M12 1/2-20UNF |
|
|
|
|
|
5.0t 10klb |
38 (1.48) |
30.2 (1.19) |
20.5 (0.8) |
M20 3/4-20UNF |
|
|
|
|
|
Rated output |
2.0 mv/v±0.1% |
Insulation resistance |
≥5000MΩ |
|
Non-linearity |
0.03 %F.S |
Excitation voltage |
10V (maximum 15V) AC/DC |
|
Hysteresis |
0.03 %F.S |
Environmental protection |
IP67 |
|
Creep in 30 minutes |
0.03 %F.S |
Safe overload |
150 %F.S |
|
Zero balance |
±1 %F.S |
Ultimate overload |
300 %F.S |
|
Input resistance |
350Ω ±3.5Ω 1000Ω ±10Ω |
Operating temperature range |
-10℃～+40℃ |
|
Output resistance |
351Ω ±2Ω 1004Ω ±5Ω |
Material |
Alloy steel & Stainless steel |
