Capacity

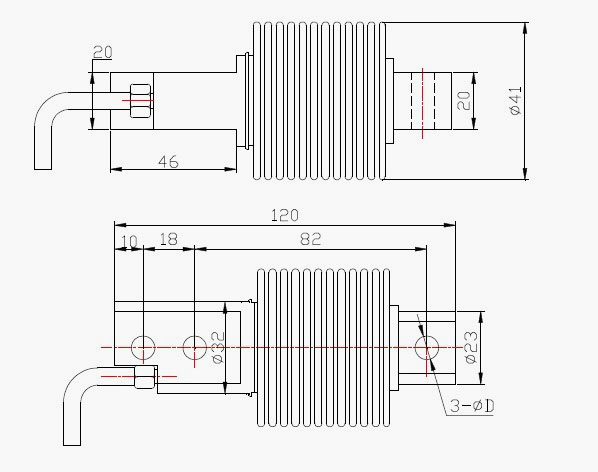

Size mm

Weight（kg）

5,10,20,50,100,200,500

8.2

0.5

Rated output

2.0 mv/v ±0.1%

Insulation resistance

≥5000Ω

Non-linearity

±0.03%F.S

Rated excitation

10V (maximum 15V)  AC/DC

Hysteresis

±0.03%F.S

Protection class

IP68

Creep/ 30 minutes

±0.03%F.S

Safe overload

150%F.S

Zero balance

±1%F.S

Ultimate overload

300%F.S

Input impedance

350Ω±5Ω

Operating Temp. range

-10℃ ～ +40℃

Output impedance

350Ω±2Ω

Cable length

5m
