100-2000kg, 5000kg, 10000kg, 20000kg, 30000kg
Inquiry now
|

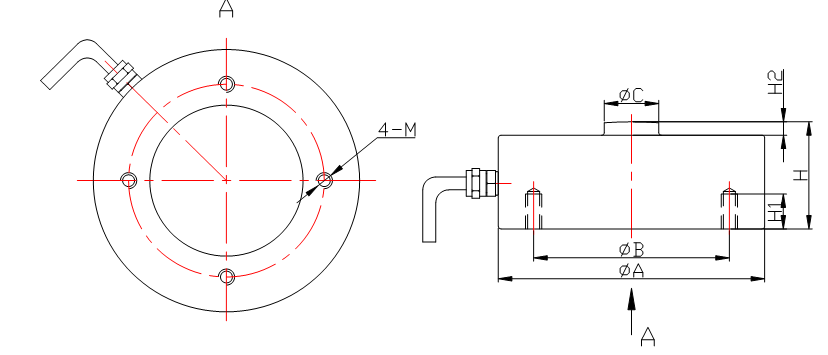

Capacities (kg) |
|
A |
B |
C |
H |
H2 |
H1 |
M |
|
100-2000 |
mm |
62 |
55 |
12 |
22 |
4 |
7 |
M5 |
|
5000 |
mm |
98 |
72 |
20 |
40 |
5 |
13 |
M6 |
|
10000 |
mm |
98 |
72 |
20 |
45 |
5 |
13 |
M6 |
|
20000 |
mm |
118 |
90 |
25 |
50 |
7 |
15 |
M8 |
|
30000 |
mm |
138 |
115 |
25 |
73 |
8 |
15 |
M10 |
|
Rated output |
2.0mv/v ± 0.1% |
Insulation resistance |
≥5000Ω |
|
Nonlinearity |
±0.03%F.S |
Rated excitation |
10V (maximum 15V) AC/DC |
|
Hysteresis |
±0.03%F.S |
Protection class |
IP67 |
|
Creep/ 30 minutes |
±0.03%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
300%F.S |
|
Input impedance |
380Ω±10Ω |
Operating Temp. range |
-10℃ ～ +40℃ |
|
Output impedance |
350Ω±3Ω |
Cable length |
5m |
