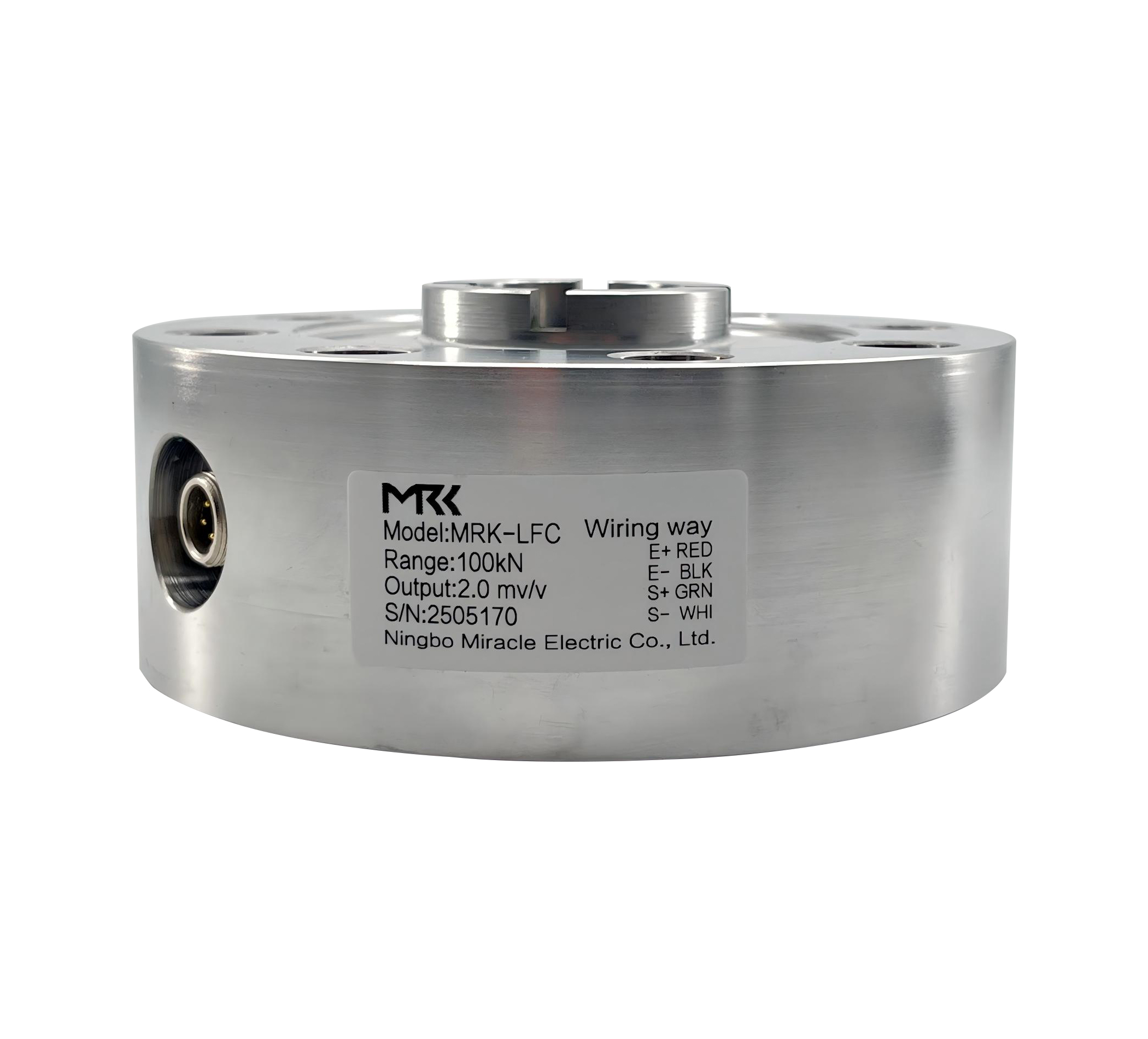

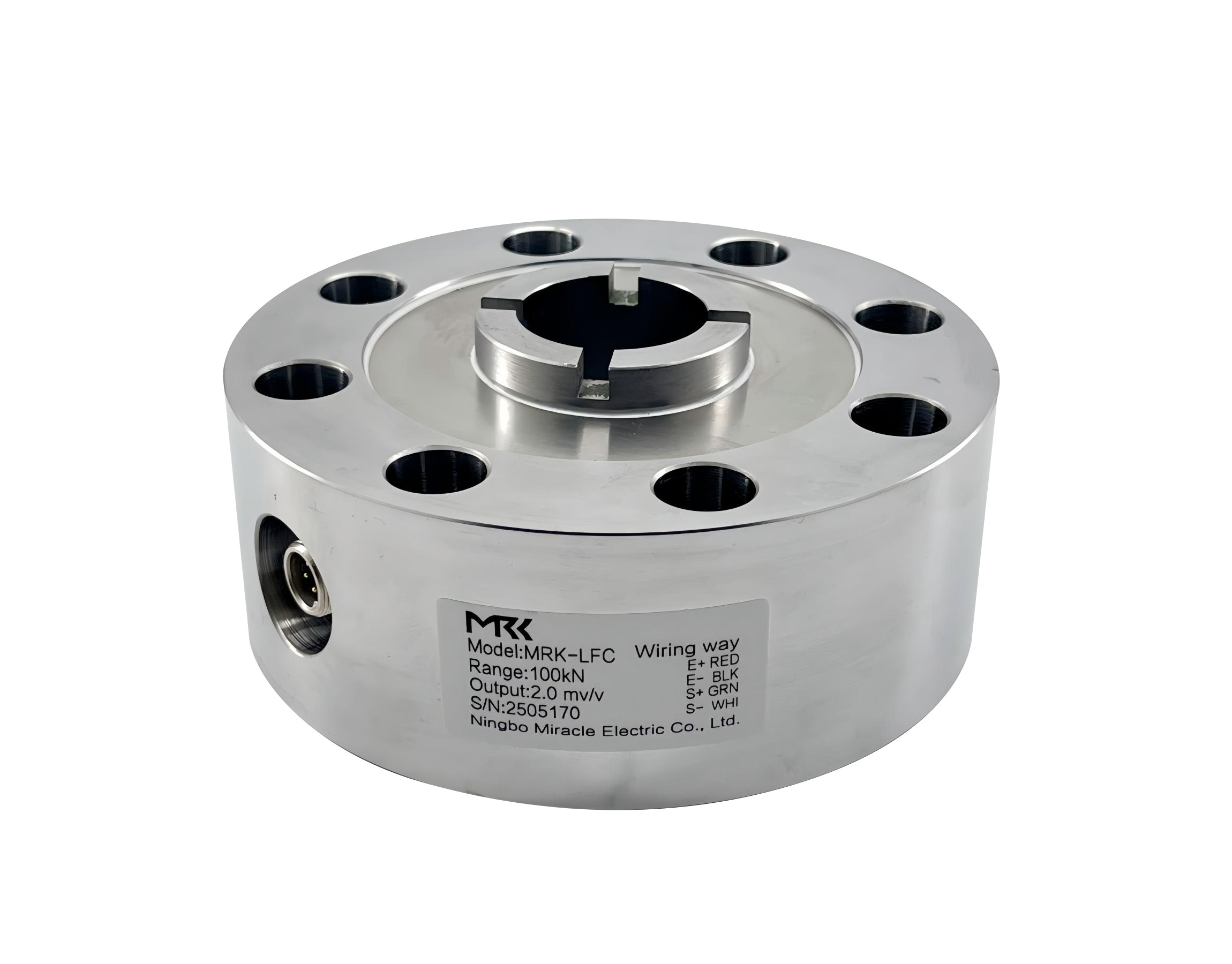

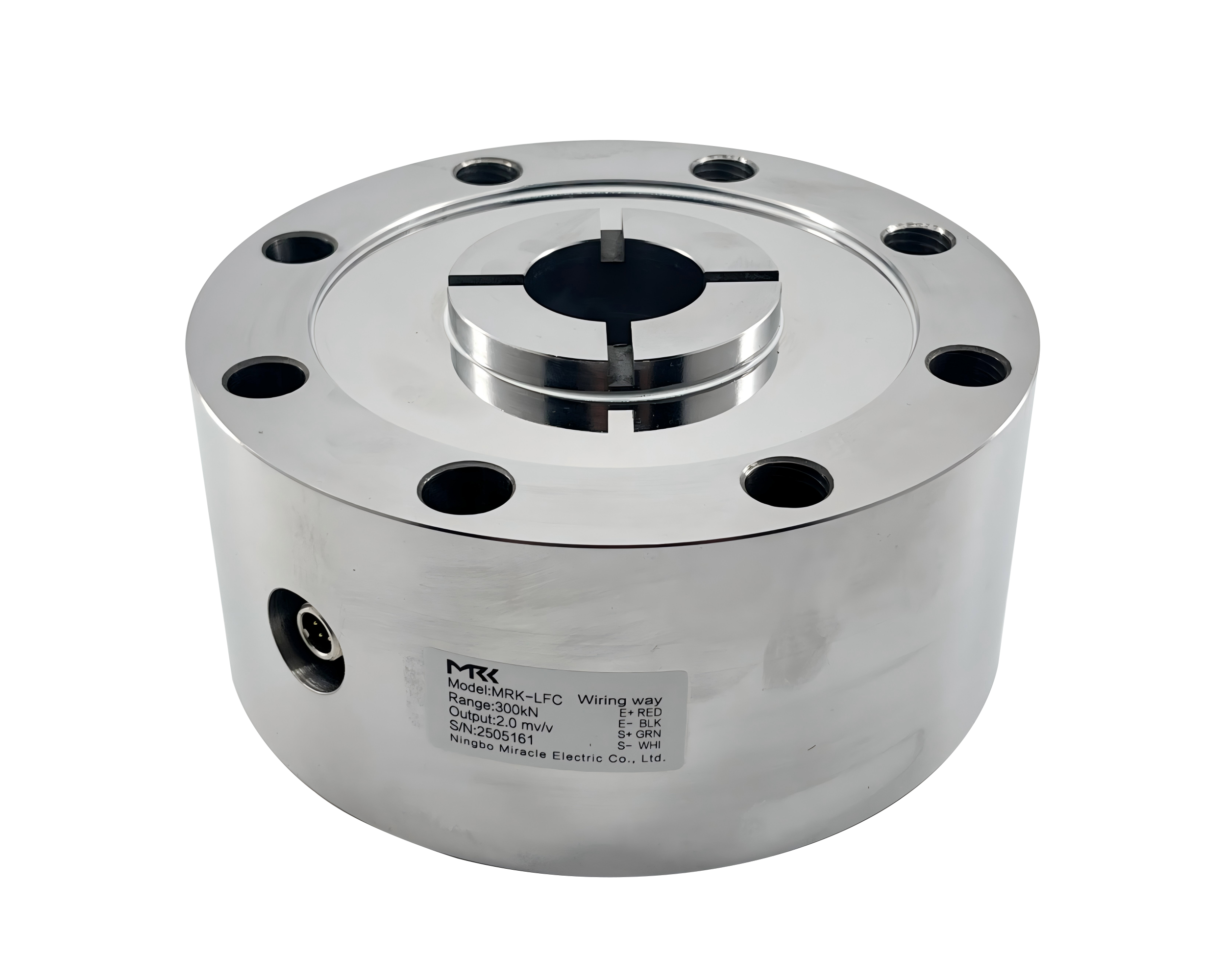

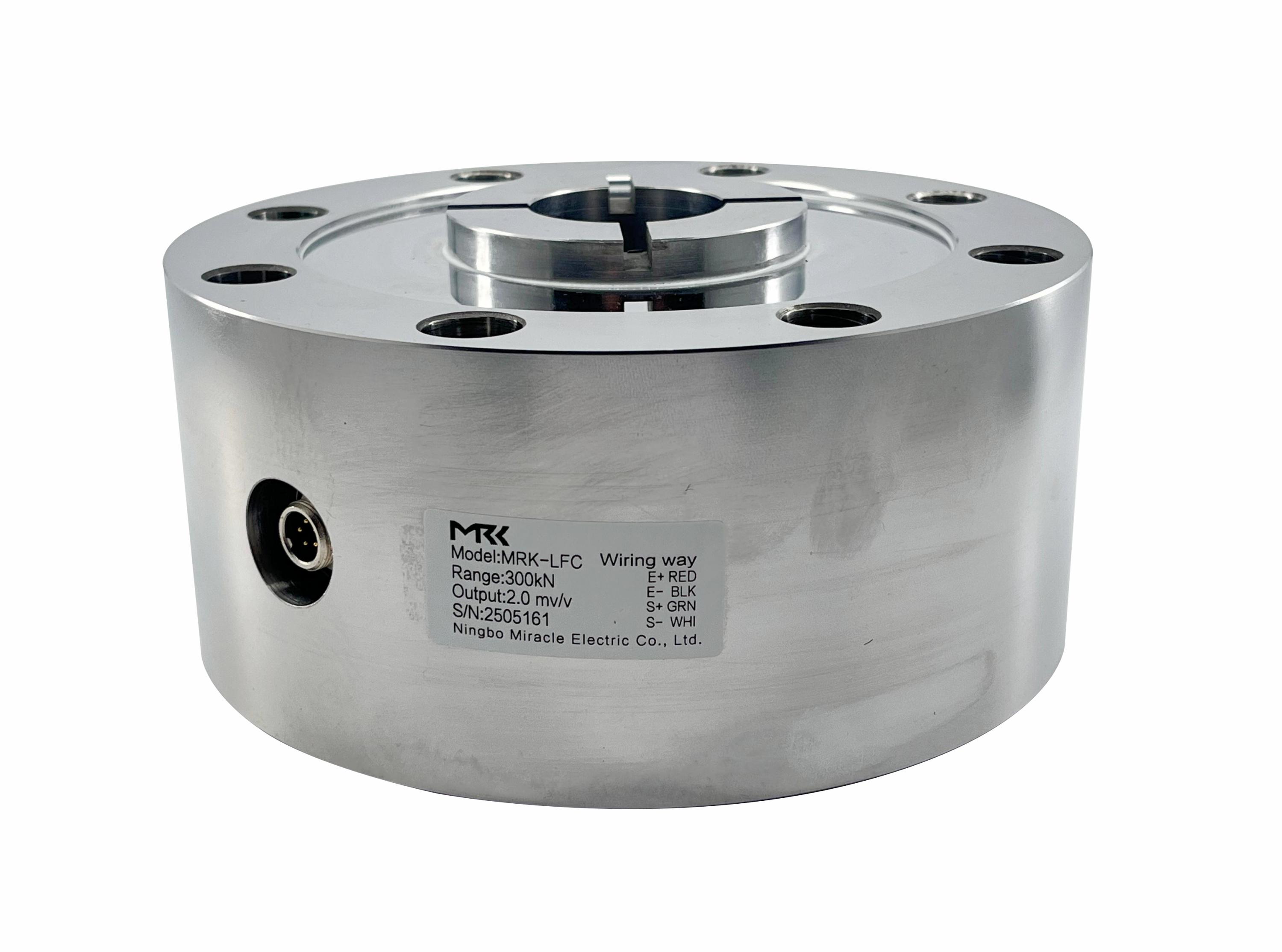

Nickel plated alloy steel IP68 spoke type load cell.
Tension and compression applications.
Suitable for truck scales, hopper scales, automobile testing facilities and other electronic weighing or force measuring field.
5t, 10t, 20t, 30t
Inquiry now
|

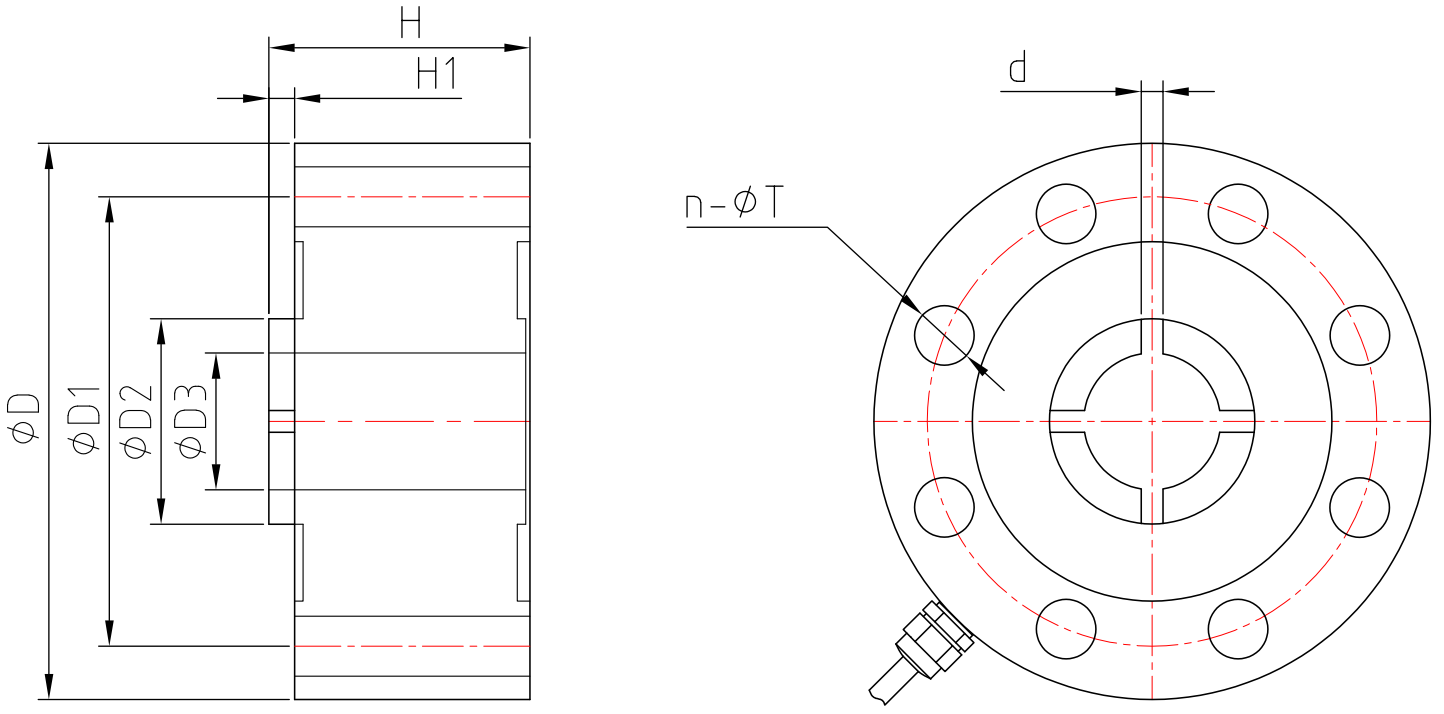

Capacity |
Size mm |
|||||||
|
t |
D |
D1 |
D2 |
D3 |
d |
H |
H1 |
n-ΦT |
|
5-10 |
130 |
105 |
48 |
32+0.10 |
4×5.1 |
55 |
6 |
8-Φ14 |
|
20-30 |
182 |
154 |
72 |
39+0.10 |
4×5.1 |
80 |
6 |
8-Φ15 |
|
Rated output |
2.0mv/v ±0.1% |
Insulation resistance |
≥5000MΩ |
|
Non-linearity |
0.05%F.S |
Excitation voltage |
10V (maximum 15V) AC/DC |
|
Hysteresis |
0.05%F.S |
Environmental protection |
IP67 |
|
Creep in 30 minutes |
0.05%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
200%F.S |
|
Input resistance |
385Ω±20Ω |
Operating temperature range |
-10℃ ～ +40℃ |
|
Output resistance |
350Ω±3Ω |
Material |
Alloy steel |
