Capacities (t)

Capacities (kN)

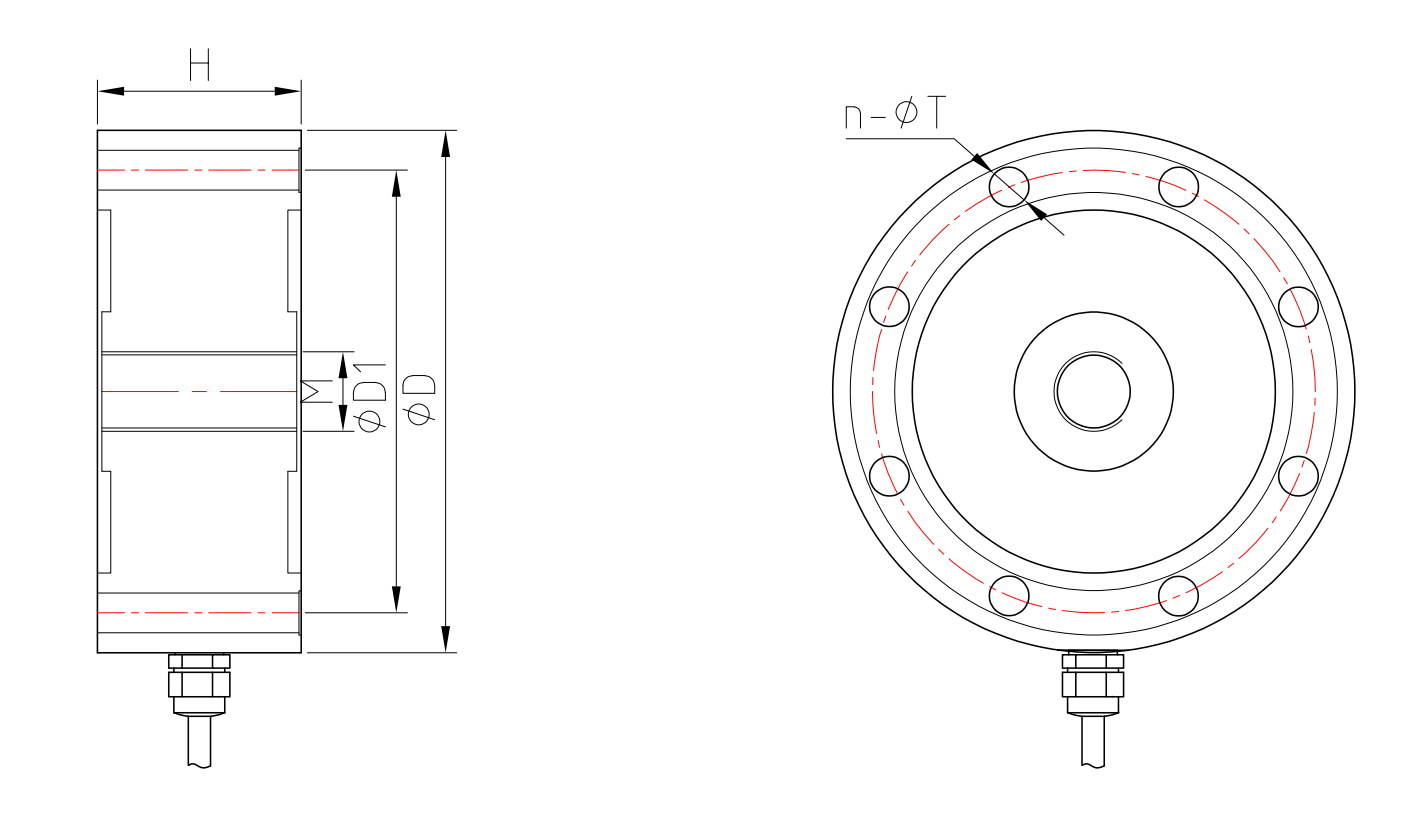

D

D1

H

M

n-ΦT

1 - 10

10 - 100

mm

118

100

46

M18 x 1.5

8-Φ9

20 - 30

200 - 300

mm

182

154

60

M39 x 2

8-Φ14

Rated output

2.0mv/v ±0.1%

Insulation resistance

≥5000MΩ

Non-linearity

±0.05%F.S

Rated excitation

10V (maximum 15V)  AC/DC

Hysteresis

±0.05%F.S

Protection

IP67

Creep/ 30 minutes

±0.05%F.S/min

Safe overload

150 %F.S

Zero balance

±1%F.S

Ultimate overload

200 %F.S

Input resistance

380Ω ± 20Ω

Operating Temp. range

-10℃ ～ +40℃

Output resistance

350Ω ± 3Ω

Cable length

5m
