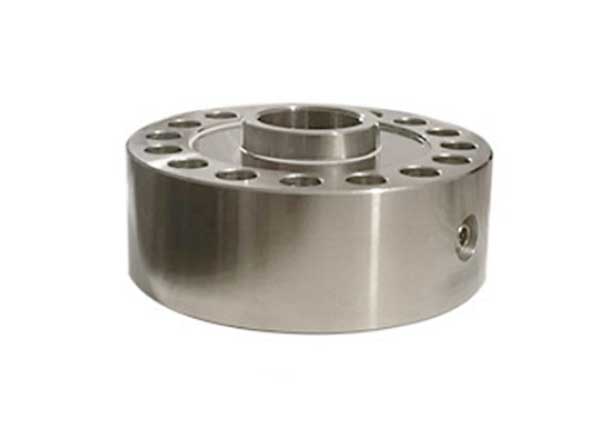

Low profile, suitable for tension and compression using.
Small deflection, the compact construction is suitable for withstanding extraneous loads.
High permissible dynamic load, protection to IP67.
30t, 60t, 100t, 200t
Inquiry now
|

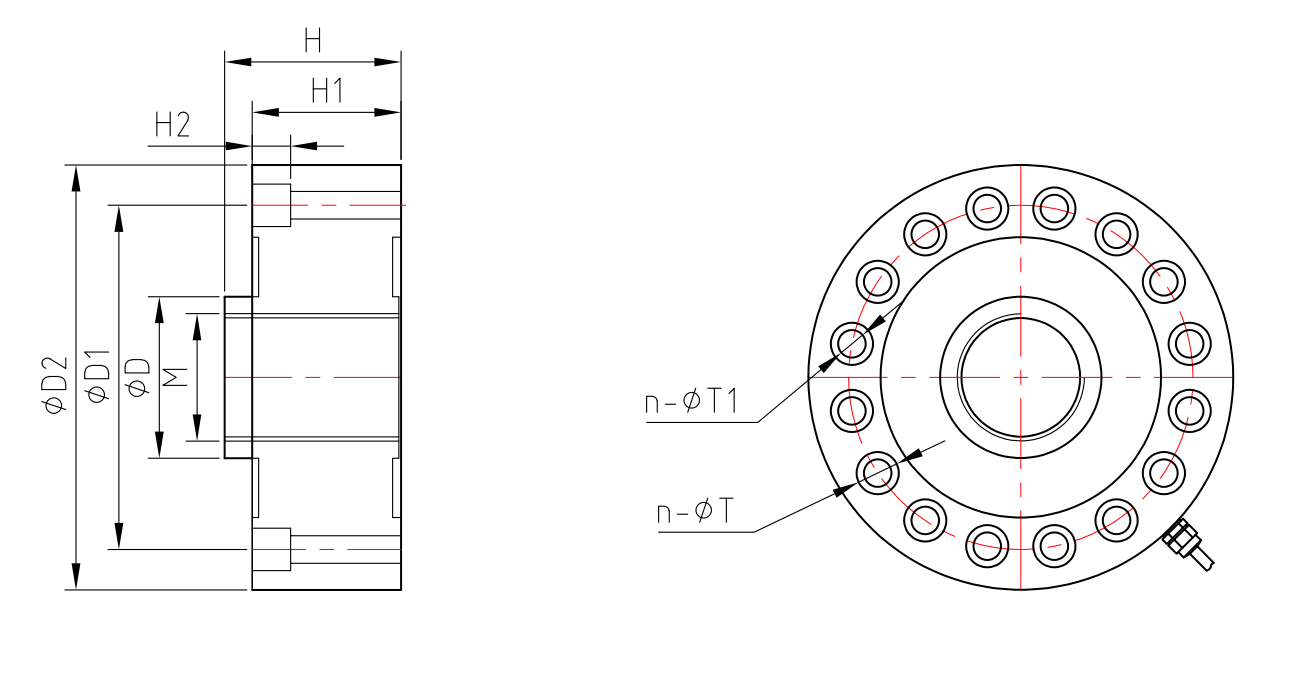

Capacity |
Size mm |
||||||||
|
t |
D |
D1 |
D2 |
H |
H1 |
H2 |
M |
n-ΦT |
n-ΦT1 |
|
30 |
120.6 |
101.8 |
43 |
48 |
41 |
10.5 |
M32×1.5 |
8-Φ14 |
8-Φ8.5 |
|
60 |
153 |
130 |
70 |
58 |
51 |
16 |
M40×1.5 |
8-Φ17 |
8-Φ10.5 |
|
100 |
200 |
162 |
76 |
83 |
70 |
18 |
M64×3 |
16-Φ20 |
16-Φ13 |
|
200 |
295 |
245 |
136 |
105 |
100 |
-- |
M90×3 |
-- |
8-Φ22 |
|
Rated output |
2.0mv/v ±0.1% |
Insulation resistance |
≥5000MΩ |
|
Non-linearity |
0.05 %F.S |
Excitation voltage |
10V (maximum 15V) AC/DC |
|
Hysteresis |
0.05 %F.S |
Environmental protection |
IP67 |
|
Creep in 30 minutes |
0.05 %F.S |
Safe overload |
150 %F.S |
|
Zero balance |
±1 %F.S |
Ultimate overload |
200 %F.S |
|
Input resistance |
750Ω ±20Ω |
Operating temperature range |
-10℃ ～ +40℃ |
|
Output resistance |
700Ω ±5Ω |
Material |
Alloy steel |
