15t, 20t, 30t, 50t, 100t, 200t, 250t
Inquiry now
|

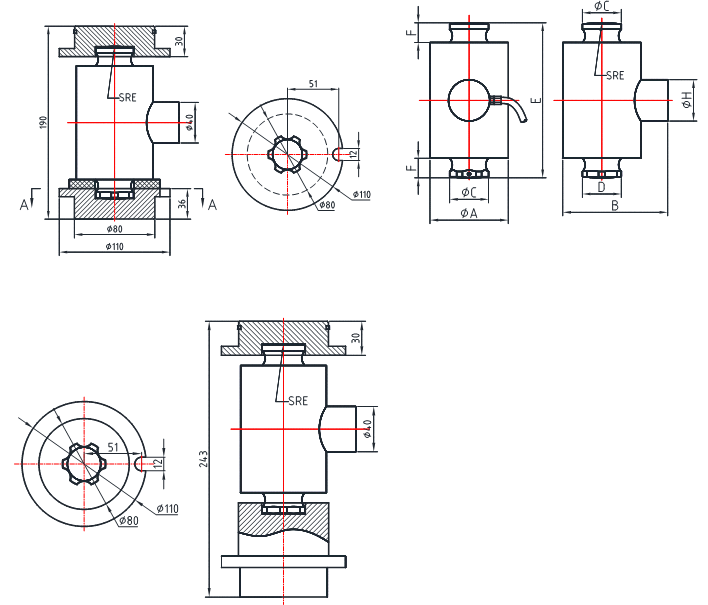

Capacity |
Size（mm） |
|||
|
15,20,30 |
50 |
100 |
200,250 |
|
|
A |
76 |
76 |
102 |
159 |
|
B |
102 |
102 |
122 |
179 |
|
C |
37.8 |
37.8 |
53.8 |
80 |
|
D |
35.5 |
35.5 |
50.6 |
75.3 |
|
SRE |
160 |
305 |
305 |
400 |
|
E |
150 |
150 |
150 |
195 |
|
F |
19 |
19 |
19 |
25 |
|
H |
40 |
40 |
40 |
40 |
|
Rated output |
2.0mv/v ± 0.002 |
Insulation resistance |
≥5000Ω |
|
Non-linearity |
0.03%F.S |
Excitation voltage |
10V (maximum 15V) AC/DC |
|
Hysteresis |
0.03%F.S |
Environmental protection |
IP67 |
|
Creep in 30 minutes |
0.03%F.S |
Safe overload |
150%F.S |
|
Zero balance |
±1%F.S |
Ultimate overload |
300%F.S |
|
Input resistance |
1160Ω ± 10Ω |
Operating temperature range |
-10℃ ～ +40℃ |
|
Output resistance |
1000Ω ± 3Ω |
Material |
Alloy steel |
