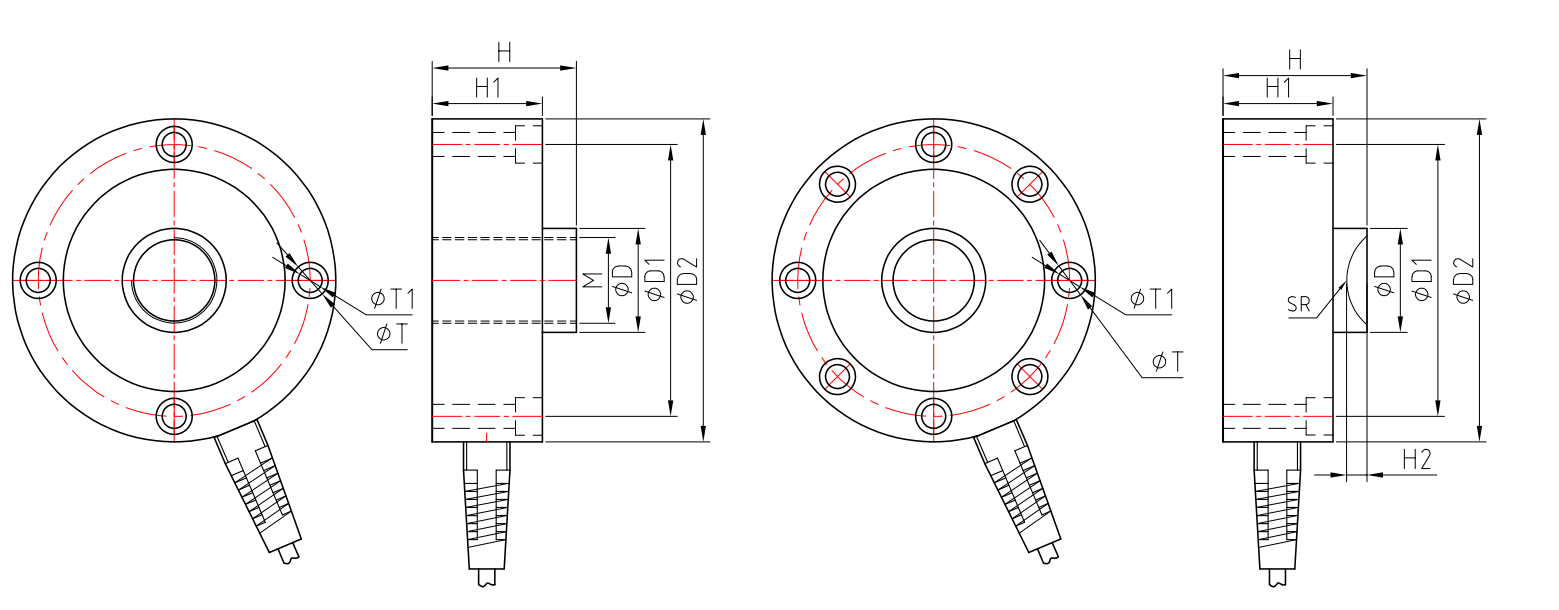

Capacity (Klb)

D

D1

D2

H

H1

H2

M

T

T1

SR

5, 10

mm

104.7

88.9

32

34.8

31.75

--

5/8-18UNF

8-Φ7.2

10.5×7.2DP

--

25,50

mm

120.7

101.6

38.9

53.8

41.1

7.6

--

4-Φ8.7

13.5×9.7DP

22.2

100

mm

138

116.8

50.4

57.2

50.8

7.6

--

8-Φ10.13

16.5×11DP

22.2

Rated output

4.0mv/v ±0.1%

Insulation resistance

≥5000Ω

Non-linearity

0.05%F.S

Rated excitation

10V (maximum 15V)  AC/DC

Creep in 30 minutes

0.05%F.S

Protection class

IP67

Zero balance

±1 %F.S

Safe overload

150%F.S

Input resistance

385Ω ±5Ω, 770Ω ±10Ω

Ultimate overload

200%F.S

Output resistance

350Ω ±3Ω, 700Ω ±5Ω

Operating Temp. range

-10℃ ～ +40℃

Output range

4-20mA, 0-10v, 0-5v, -10v ~ +10v

Cable length

5m
