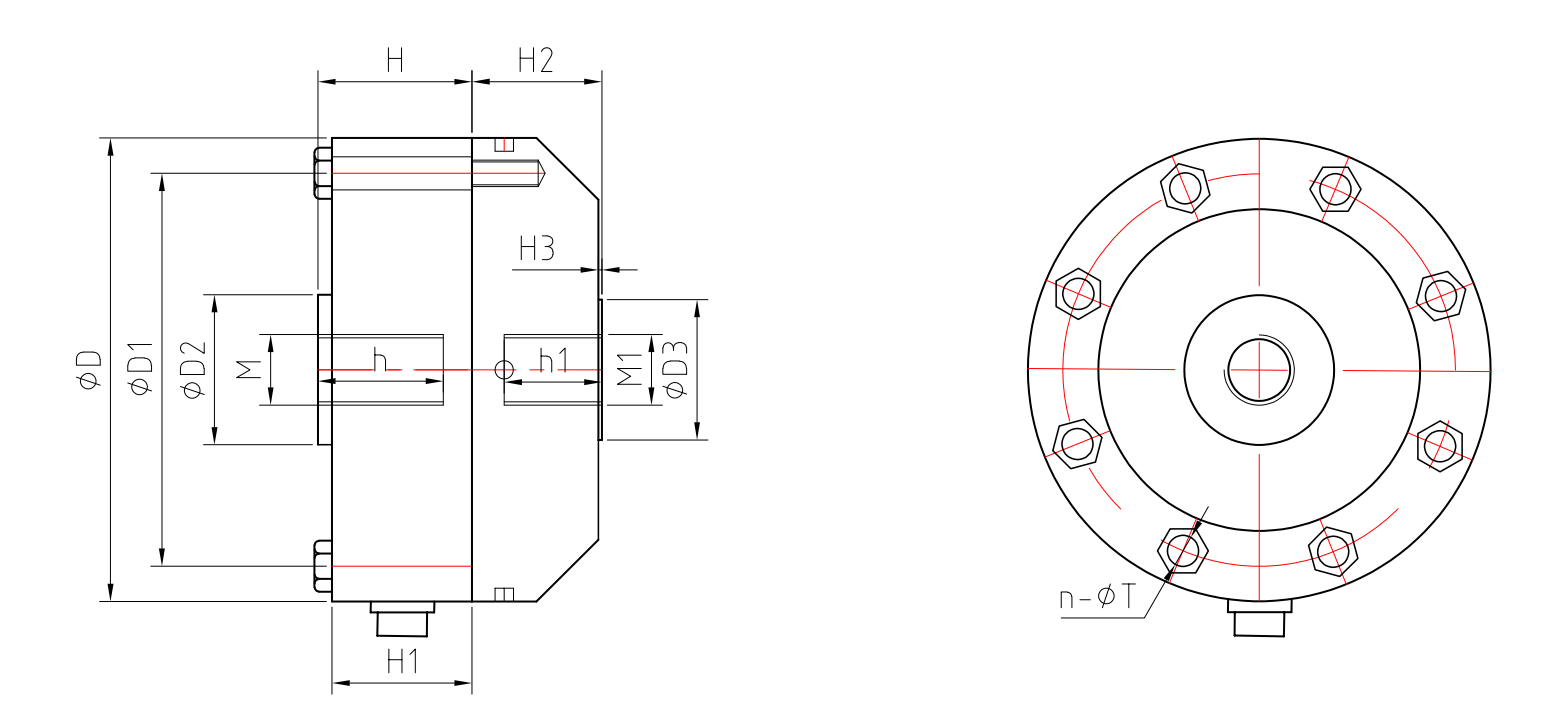

Capacity (kN)

D

D1

D2

D3

M

H

H1

H2

H3

h

h1

M1

n-ΦT

1.5, 2.5, 5, 10, 25 ,50

mm

104.8

88.9

34

31.8

M16×2-4H

34.9

31.7

28.6

0.8

28.4

22.1

M16×2-4H

8-Φ7.1

100, 250

mm

153.9

130.3

67.3

57.2

M33×2-4H

44.5

41.45

44.5

0.8

35.6

35.6

M33×2-4H

12-Φ10.4

450

mm

203.2

165.1

95.2

76.2

M42×2-4H

63.5

57.2

50.8

0.8

54.6

44.5

M42×2-4H

16-Φ13.5

Rated output

4.0mv/v ±0.1%, 2.0mv/v ±0.1%

Insulation resistance

≥5000Ω

Non-linearity

±0.04%F.S (0.3~2klb/1.5~10kN),
±0.05%F.S (5~100klb/25~450kN)

Rated excitation

10V (maximum 15V)  AC/DC

Hysteresis

±0.03%F.S (0.3~2klb/1.5~10kN),
±0.05%F.S (5~100klb/25~50kN),
±0.06%F.S (25~100klb/100~450kN)

Protection class

IP67

Creep/ 30 minutes

±1%F.S

Safe overload

150%F.S

Zero balance

385Ω ±15Ω

Ultimate overload

200%F.S

Input impedance

350Ω ±3Ω

Operating Temp. range

-10℃ ～ +40℃

Output range

4-20mA, 0-10v, 0-5v, -10v ~ +10v

Cable length

5m
