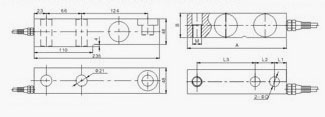

Capacity

Size mm

Weight (kg)

t

A

B

L1

L2

L3

D

M

0.1-0.5

130

31.8

15.7

25.4

76.2

13

M12

1.7

1~3

130

31.8

15.7

25.4

76.2

13

M16

2.5

171.5

38.1

19.1

38.1

95.3

19.8

M20*1.5

2.8

3

171.5

38.1

19.1

38.1

95.3

19.8

5

171.5

38.1

19.1

38.1

95.3

19.8

7.5

225.5

50.8

25.4

50.8

124

27

M24*2

6.7

10

225.5

50.8

25.4

50.8

124

27

Accuracy class according to OIML R60 Max.numbers of LC verification intervals(nLC)

(0.0330%)1000

(0.0180%) 3000

Reference excitation voltage(Uref)

12 V(DC)

Min.load cell verification interval(vmin)

0.02 % of Emax

0.01 % of Emax

 0.0083 % of Emax

Norminal range of excitation voltage (BU)

7 V(DC)…..20 V(DC)

Rated load

0.1t -10t

Asynchrone lnterface

RS-485/2-wire(Cable length up to 1200m)

Rated Output

1000000 Digit

Baudrate

1200 Baud …115200 Baud

Sensitivity tolerance

±0.3 %

Number of bus address

max.32

Temperature effect on sensitivity (TKC)1)

±0.0258 % of Cn/10K

±0.0010 % of Cn/10K

Nominal temperature range(BT)

10 oC .....+40 oC [14oF....104oF]

Temperature effect on zero signal(TK0)

±0.0288 % of Cn/10K

±0.0015 % of Cn/10K

Service temperature range (Btu)

20 oC ....+70 oC [-4oF....158oF]

Hysteresis error (dhy)1)

±0.0350 % of Cn

±0.0170 % of Cn

Storage temperature range (Btl)

50 oC ....+85 oC [-58oF....185oF]

Non-Linearity(din)1)

±0.0300 % of Cn

±0.0190 % of Cn

Limit load(EL)

200 % of Emax

Creep(dcr).30min

±0.0350 % of Cn

±0.0167 % of Cn

Breakig load(Ed)

＞300 % of Emax

Resolution

20(at 1Hz) Bit

Protection class according to EN60529(IEC529)

IP 68 (test conditions 100 hat 1m water column)

Measuring rate

30 /secretary …..100 /secretary

Maxium Transmitting Distance

1200m
