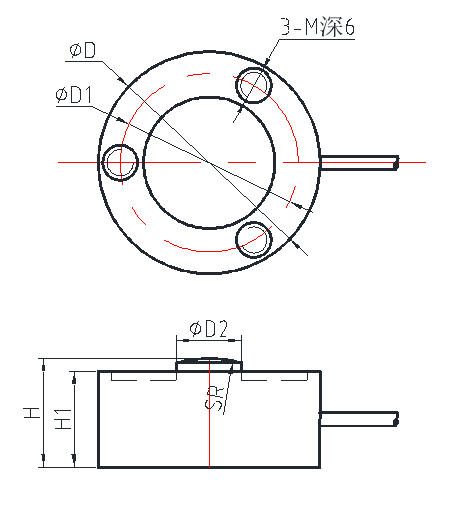

Capacities (N)

D

D1

D2

H

H1

SR

M

50 - 100

mm

25

19

5

16

14.5

10

M4

1K - 10K

mm

32

24.5

8

16

14

16

M5

20K - 50K

mm

38

30

11

16

14

20

M6

60K - 120K

mm

51

41

15

25

22

30

M8

Rated output

1.0mv/v±20% (50,100N), 1.5mv/v±20% (1KN - 120KN)

Insulation resistance

≥5000Ω

Nonlinearity

±0.5%F.S

Rated excitation

4~7V (maximum 8V)  AC/DC

Hysteresis

±0.5%F.S

Protection class

IP67

Creep/ 30 minutes

±0.5%F.S

Safe overload

150%F.S

Zero balance

±1%F.S

Ultimate overload

300%F.S

Input impedance

350Ω±3Ω

Operating Temp. range

-10℃ ～ +40℃

Output impedance

350Ω±2Ω

Cable length

5m
