Six-wire (four-wire)cable
Length:100m\circle or 200m\cirle
Low capacitive reactance value
Symmetry of the high-capacitance
Number of cable*diameter:7*0.2mm²/16*0.15mm²

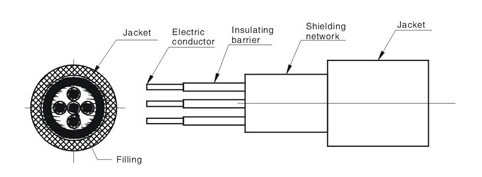

XLPE insulation ,PVC jacket, shielding Heart Network
|
Cable length |
100m/circle or 200m/circle |
|
Outer cable color |
black, grey |
|
Outer material |
PVC |
|
Insulation material |
XLPE |
|
Number of cable |
4/6 |
|
Cross-sectional area |
7*0.2mm²/16*0.15mm² |
|
Resistance |
250Ω/km |
|
Diameter size |
Φ6±0.2mm/Φ5±0.2mm |
|
Insulation remittance |
≥5000mΩ/100m |
|
Cable color |
Red,black,green,white/red,black,green,white,blue,yellow |
