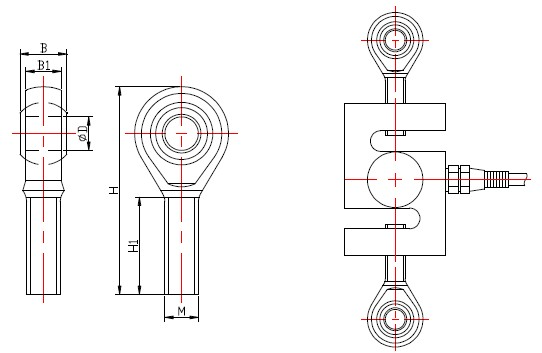

Rod end joint bearing
Combination s type load cells
Suitable for crane scale ,packing scale, hopper scale and electron weighing apparatus
|
Size（mm） |
||||||||||||
|
M |
M6*1 |
M8*1.5 |
M10*1.5 |
M12*1.75 |
M14*2 |
M16*2 |
M18*1.5 |
M20*1.5 |
M22*1.5 |
M24*2 |
M27*2 |
M30*2 |
|
D |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
28 |
30 |
|
B |
9 |
12 |
14 |
16 |
19 |
21 |
23 |
25 |
28 |
31 |
35 |
37 |
|
B1 |
6.8 |
9 |
11 |
12 |
14 |
15 |
17 |
18 |
20 |
22 |
26 |
25 |
|
H1 |
22 |
25 |
29 |
33 |
36 |
40 |
44 |
47 |
51 |
57 |
62 |
66 |
|
H |
46 |
54 |
62 |
70 |
77 |
86 |
95 |
103 |
111 |
124 |
136 |
145 |
