5kN, 10kN, 20kN, 30kN, 50kN, 100kN, 200kN, 300kN, 500kN, 600kN, 1000kN, 2000kN, 3000kN, 5000kN
Inquiry now
|

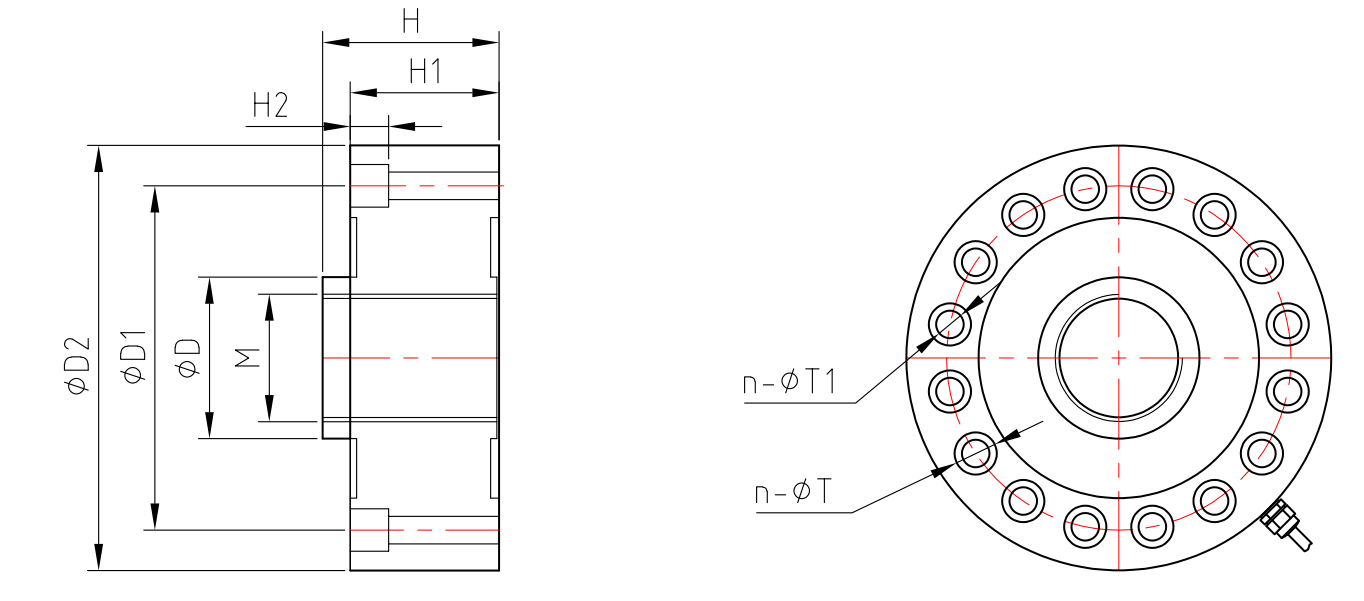

Capacities (t) |
Capacities (kN) |
|
D |
D1 |
D2 |
H |
H1 |
H2 |
M |
n-ΦT |
n-ΦT1 |
|
0.5 - 7.5 |
5 - 75 |
mm |
105 |
89 |
32 |
37 |
34 |
7.2 |
M16×1.5 |
8-Φ10.5 |
8-Φ7.5 |
|
10 - 25 |
100 - 250 |
mm |
120.6 |
101.8 |
39 |
48 |
41 |
10.5 |
M32×1.5 |
8-Φ14 |
8-Φ8.5 |
|
30 |
300 |
mm |
141 |
116.8 |
50.4 |
57.2 |
50.8 |
11 |
M40×1.5 |
8-Φ18 |
8-Φ11 |
|
50 |
500 |
mm |
141 |
116.8 |
54.4 |
57.2 |
50.8 |
11 |
M40×1.5 |
8-Φ18 |
8-Φ11 |
|
60 - 100 |
600 - 1000 |
mm |
200 |
162 |
76 |
83 |
70 |
18 |
M60×2 |
16-Φ20 |
16-Φ13 |
|
150 - 200 |
1500 - 2000 |
mm |
250 |
210 |
110 |
100 |
90 |
20 |
M80×3 |
16-Φ28 |
16-Φ17 |
|
300 |
3000 |
mm |
320 |
270 |
162 |
100 |
100 |
20 |
M96×4 |
16-Φ28 |
16-Φ17 |
|
500 |
5000 |
mm |
400 |
343 |
220 |
125 |
120 |
-- |
M150×4 |
-- |
16-Φ32.5 |
|
1000 |
10000 |
mm |
490 |
420 |
310 |
170 |
160 |
-- |
M200×4 |
-- |
28-Φ27 |
|
2000 |
20000 |
mm |
790 |
680 |
400 |
245 |
230 |
-- |
M280×8 |
-- |
16-Φ76 |
|
Rated output |
2.0mv/v ±0.1% |
Insulation resistance |
≥5000MΩ |
|
Nonlinearity |
±0.05 %F.S (5-500kN), ±0.1%F.S (600-5000kN) |
Rated excitation |
10V (maximum 15V) AC/DC |
|
Creep/ 30 minutes |
±0.05 %F.S |
Protection class |
IP67 |
|
Zero balance |
±1%F.S |
Safe overload |
150 %F.S |
|
Input impedance |
385Ω ± 20Ω (5-500kN), 750Ω ± 20Ω (600-5000kN) |
Ultimate overload |
300 %F.S |
|
Output impedance |
350Ω ± 5Ω (5-500kN), 700Ω ± 5Ω (600-5000kN) |
Operating Temp. range |
-10℃ ～ +40℃ |
|
Output range |
4-20mA, 0-10v, 0-5v, -10v ~ +10v |
Cable length |
5m |
