Parameter name

Parameter value

Description

Characteristic parameters

Support frequency band

LTE-FDD B1/B3/B5/B8
LTE-TDD B34/B38/B39/B40/B41

Network access standard

4G CAT1

Network protocol characteristics

Support TCP/ UDP/ PPP/ NTP/ NITZ/ FTP/ HTTP/ PING/ CMUX/ HTTPS/ FTPS/ SSL/ FILE/ MQTT/ MMS/ SMTP/ SMTPS protocols

Hardware features

Data interface

RS485 (2PIN terminal)

RF interface

SMA

Operating Voltage

DC 5V-24V

Operating temperature

-35℃ ～ +75℃

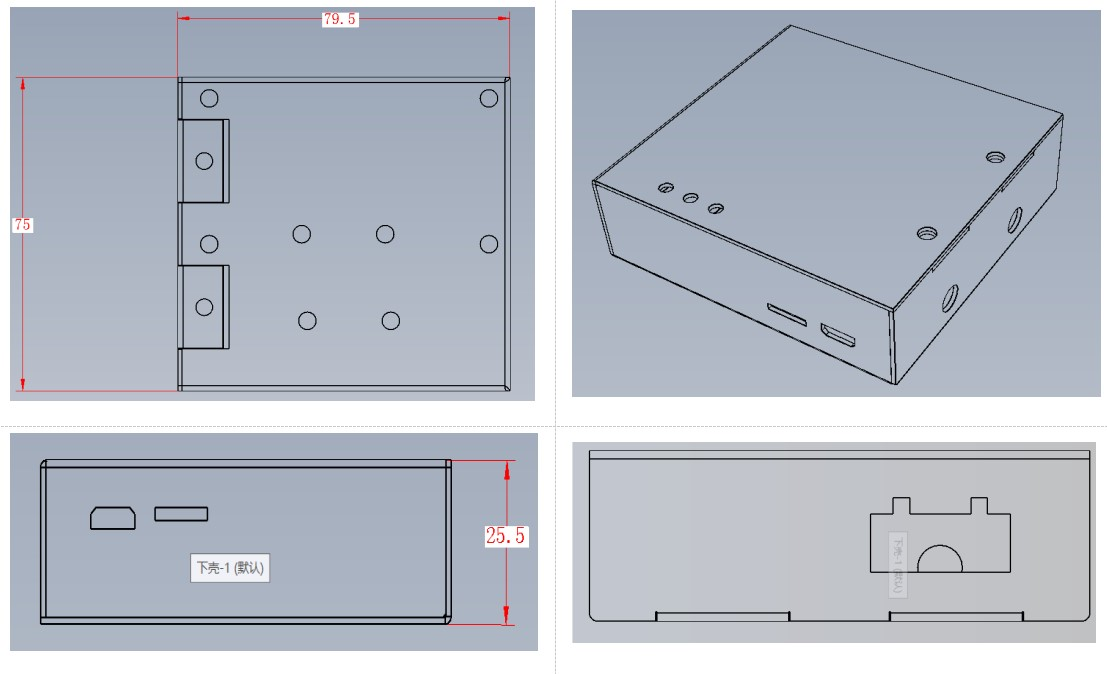

Dimensions

79.5mm x 75.0 mm x 25.5mm

SIM card holder

NaNo SIM Card

Installation method

positioning hole installation

RS485 Surge parameters

Ipp @ 10/1000μs: 30.2A
Vc: 19.9V
Ppp @ 10/1000μs: 600W

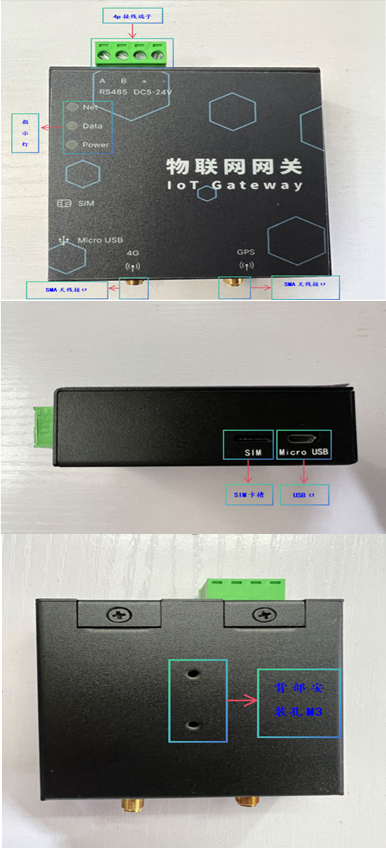

Indicator light

Data

Flashing: When the serial port is sending/receiving data

Net

Flashing: The device is powered on and is searching for a SIM card
Steady on: The device is successfully attached to the network;
Flashing: When the serial port is sending/receiving data

Power

Lights up when power is on
