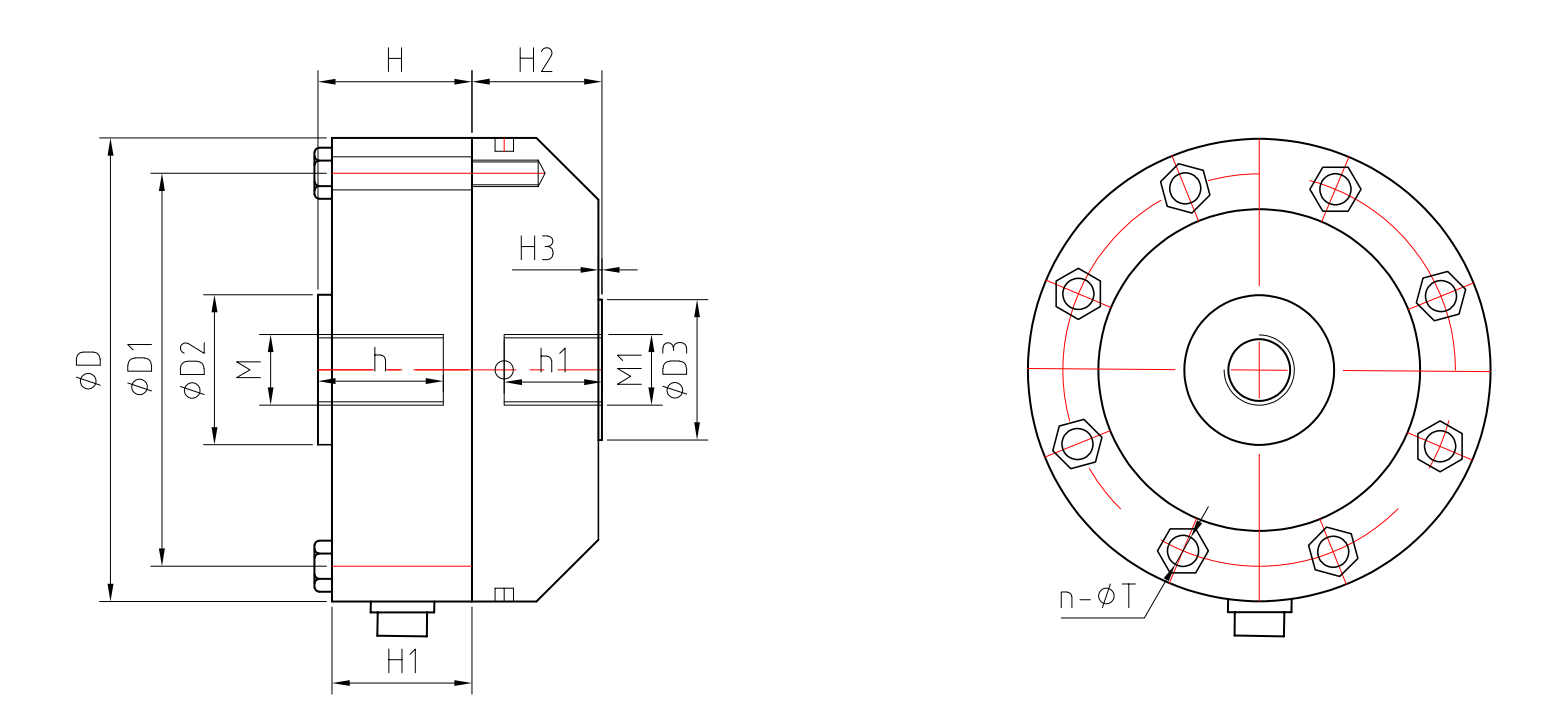

量程 kN |
|
D |
D1 |
D2 |
D3 |
M |
H |
H1 |
H2 |
H3 |
h |
h1 |
M1 |
n-фT |
|
1.5, 2.5, 5, 10, 25 ,50 |
mm |
104.8 |
88.9 |
34 |
31.8 |
M16×2-4H |
34.9 |
31.7 |
28.6 |
0.8 |
28.4 |
22.1 |
M16×2-4H |
8-ф7.1 |
|
100, 250 |
mm |
153.9 |
130.3 |
67.3 |
57.2 |
M33×2-4H |
44.5 |
41.45 |
44.5 |
0.8 |
35.6 |
35.6 |
M33×2-4H |
12-ф10.4 |
|
450 |
mm |
203.2 |
165.1 |
95.2 |
76.2 |
M42×2-4H |
63.5 |
57.2 |
50.8 |
0.8 |
54.6 |
44.5 |
M42×2-4H |
16-ф13.5 |
|
额定输出 |
4.0mv/v ±0.1%, 2.0mv/v ±0.1% |
绝缘电阻 |
≥5000MΩ |
|
非线性 |
±0.04%F.S (0.3~2klb/1.5~10kN), |
激励电源 |
10V (maximum 15V) AC/DC |
|
蠕变/30分钟 |
±0.03%F.S (0.3~2klb/1.5~10kN), |
防护等级 |
IP67 |
|
零点平衡 |
±1%F.S |
安全载荷 |
150 %F.S |
|
输入阻抗 |
385Ω ±15Ω |
极限载荷 |
300 %F.S |
|
输出阻抗 |
350Ω ±3Ω |
工作温度 |
-10℃ ～ +40℃ |
|
可选输出信号 |
4-20mA, 0-10v, 0-5v, -10v ~ +10v |
导线长度 |
5m |
